In the world of precision weighing, bench scales are the indispensable workhorses found in countless settings, from bustling commercial kitchens and meticulous laboratories to busy warehouses and demanding industrial workshops. They offer a compact, versatile, and accurate solution for a vast array of weighing tasks. Whether you're portioning ingredients, counting inventory, formulating chemicals, or ensuring quality control, a reliable bench scale is a cornerstone of efficiency and accuracy.
This comprehensive guide covers everything you need to know about bench scales, from their core functionality and diverse applications to key features and how to choose the perfect one for your needs.
A bench scale is a type of weighing scale designed to be placed on a counter, bench, table, or workstation. Unlike larger floor scales or truck scales, they are relatively compact and typically handle capacities ranging from a few grams up to several hundred kilograms (pounds to thousands of pounds). Their defining characteristic is their portability and suitability for desktop use.
At the heart of every modern electronic bench scale lies a load cell. This is a precision transducer that converts the force exerted by the weight of an object placed on the scale's platform into an electrical signal. This signal is then processed by the scale's internal electronics and displayed as a digital weight reading. The quality and precision of the load cell are paramount for achieving accurate and reliable results.

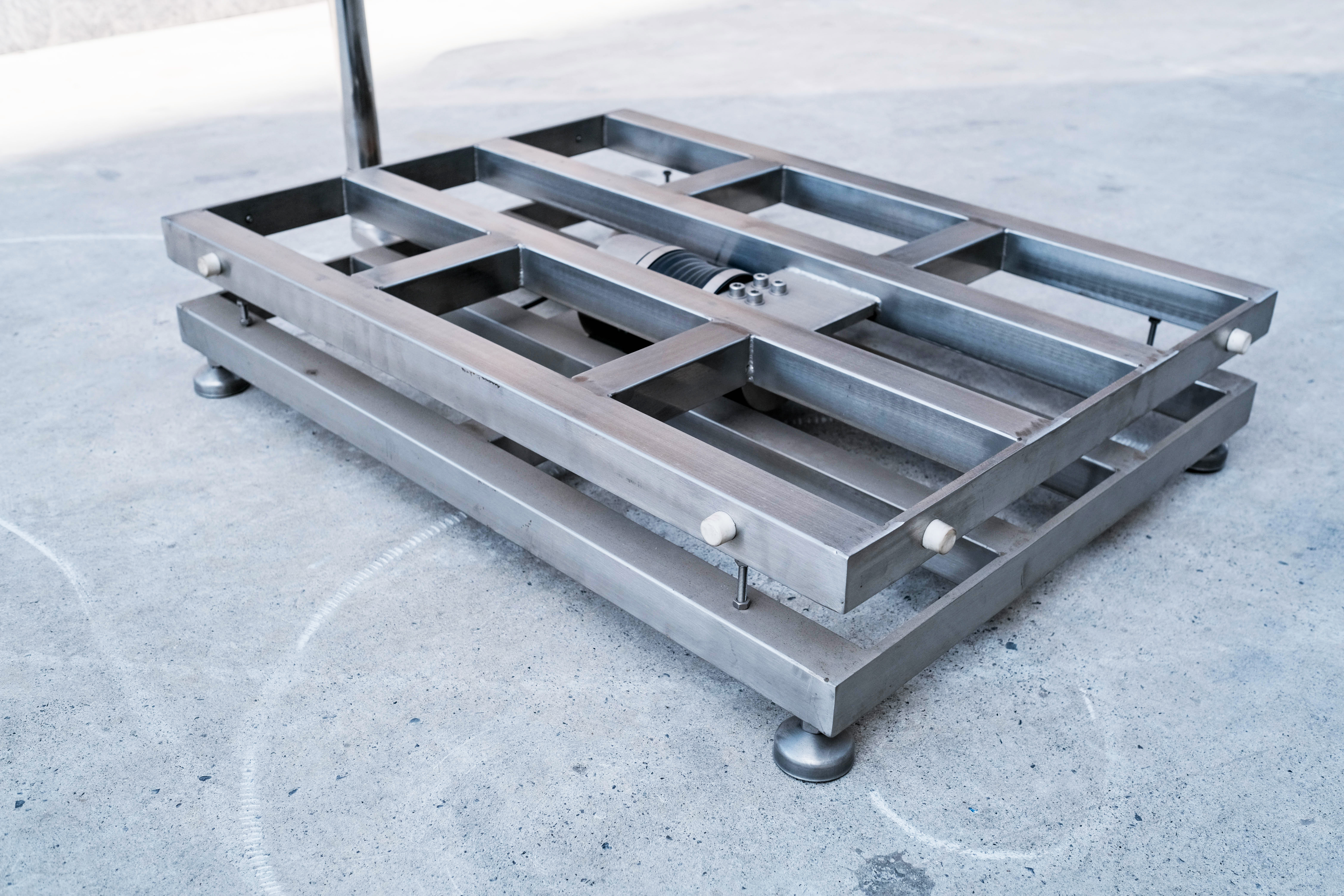

1.Weighing Platform: The surface where the object to be weighed is placed. Platforms can be made of stainless steel (ideal for hygiene and durability), coated steel.
2.Load Cell(s): The core sensor technology (usually one or more) that measures the weight.
3.Display: Shows the weight reading, often with additional information like units, battery status, or function indicators. Displays should be clear and easy to read.
4.Keypad/Controls: Allows for functions like tare (zeroing out container weight), unit conversion, counting mode, and calibration.
5.Housing/Base: Contains the electronics and provides structural support. Durability and ingress protection (IP rating) are key factors here.
6.Battery Compartment or Power Adapter: Provides power, often with both options for flexibility.
The versatility of bench scales means they are ubiquitous across many sectors:
Food & Beverage: Portion control, recipe scaling, ingredient weighing, checkweighing pre-packaged goods, inventory management in kitchens and bakeries. (Requires food-safe materials like stainless steel and high IP ratings for washdown).
Laboratories & Pharmaceuticals: Precise formulation of chemicals, weighing samples, quality control checks. (Requires high precision, readability, and often specialized features).
Warehousing & Logistics: Counting parts, inventory control, shipping and receiving small packages, order picking verification. (Requires durability and often counting functions).
Manufacturing & Industry: Raw material batching, in-process quality control, filling operations, checkweighing finished products. (Requires robust construction, higher capacities, and resistance to industrial environments - dust, vibration, moisture).
Retail: Pricing goods by weight (e.g., deli, candy, coffee shops), checkweighing.
Agriculture: Weighing seeds, fertilizers, small animal feed, produce.
Mailrooms & Shipping: Determining postage costs for letters and parcels.
Education: Science experiments, demonstrations.
1.Capacity (Max Weight): The maximum weight the scale can accurately measure. Choose a capacity higher than your heaviest typical load.
2.Readability (Division/d): The smallest increment of weight the scale can display (e.g., 0.1g, 0.2g, 0.5g, 1g, 2g, 5g, 10g, 20g, 50g, 100g, 200g, 500g, 1kg). Higher precision tasks require finer readability (smaller d value).
3.Platform Size & Material:
Size: Must comfortably accommodate the items you typically weigh. Too small is restrictive, too large can be cumbersome on a bench.
Material:
Stainless Steel (SS): Essential for food, pharmaceutical, labs, and corrosive environments. Hygienic, easy to clean.
Coated Steel: A balance between durability and cost, less corrosion-resistant than SS.
4.Accuracy & Calibration: Accuracy defines how close the displayed weight is to the true weight. Regular calibration with certified weights is critical to maintain accuracy over time. Look for scales with internal or external calibration capabilities.
5.Durability & Protection (IP Rating):
IP65: Protected against dust and low-pressure water jets.
IP66: Protected against dust and powerful water jets.
IP67: Protected against dust and immersion in water up to 1m for 30 mins.
IP68: Protected against dust and continuous submersion under specified conditions. IP67/IP68 are ideal for washdown areas (food, labs, industry).
Construction: Robust housing protects internal components from impacts and environmental stress.
6.Functions:
Tare: Subtract container weight.
Unit Conversion: Switch between g, kg, lb, oz, etc.
Parts Counting: Count identical items by weighing a sample quantity.
Checkweighing: Compare item weight against preset high/low limits.
Animal Weighing: For veterinary or agricultural use.
Percentage Weighing: Weigh as a percentage of a reference weight.Dynamic Weighing: For moving objects or animals (less accurate but useful).
7.Power Options: Battery operation (rechargeable or disposable) for portability, AC adapter for continuous desktop use, or both.
8.Connectivity (Optional): RS232, USB, or Ethernet ports for data transfer to printers, PCs, or inventory systems.
9.Compliance: Ensure the scale meets necessary trade approval (e.g., NTEP, OIML) if used for commercial transactions where weight determines price.
As a leading China weight scale manufacturer with over 20 years of experience, Massive Weighing is dedicated to producing high-quality, reliable industrial weighing solutions. When you choose a Massive Weighing bench scale, you benefit from:
Engineered for Precision & Reliability: Our scales utilize high-quality load cells and electronics to deliver consistent, accurate performance critical for your operations.
Robust Construction for Demanding Environments: We understand industrial needs. Our bench scales feature durable designs, with many models offering full stainless steel platforms and housings and high IP67/IP68 protection ratings, making them ideal for harsh conditions like food processing plants, wet workshops, and dusty warehouses.
Advanced Manufacturing Prowess: We invest in state-of-the-art production to ensure quality and consistency. We operate the largest bending machine, fully automatic welding machine, fully automatic cutter, infrared cutting machine, robot welding machine, and integrated air compressor in China.
Diverse Range: While we offer nearly 16 types of industrial scales (truck, floor, pallet, platform, crane scales, etc.), our bench scales are built with the same commitment to quality, covering various capacities, readabilities, and feature sets.
Exceptional Value: We leverage our manufacturing expertise and scale to offer competitive prices for wholesalers and distributors, providing professional-grade equipment at accessible price points.
1.Define Your Primary Use: What will you weigh most often? (e.g., ingredients, parts, packages, chemicals).
2.Determine Required Capacity & Readability: Max weight needed? How precise do measurements need to be?
3.Assess Your Environment: Is it dry, dusty, wet, corrosive? This dictates material (SS essential?) and IP rating needed.
4.Identify Necessary Functions: Do you need counting, checkweighing, specific connectivity?
5.Consider Durability Needs: Will the scale face impacts, heavy use, frequent cleaning?
6.Set Your Budget: Balance features and durability requirements with cost.
A bench scale is more than just a tool; it's an investment in accuracy, efficiency, and quality control for countless daily tasks. Understanding the features, applications, and key considerations outlined in this guide empowers you to select the perfect bench scale that meets your specific needs and withstands your operational environment.
