In the fast-moving world of logistics and warehousing, weighing pallets quickly and accurately isn’t just convenient—it’s essential for operational efficiency, shipping cost control, and inventory management. Massive Pallet Scales have emerged as a go-to solution for businesses seeking rugged, reliable, and highly accurate weighing technology. This comprehensive guide walks you through everything you need to know about using, maintaining, and optimizing your Massive Pallet Scale.
While floor scales or forklift attachments can handle pallet weighing, dedicated pallet scales like Massive’s models are engineered specifically for the challenges of warehouse environments. Unlike generic solutions, they’re designed to:
Withstand high-traffic industrial use: Built with heavy-duty materials, often including optional stainless steel components for corrosion resistance in demanding environments.
Deliver precision where it matters: Achieve high accuracy levels (±0.1% is common in premium models like Massive’s offerings), crucial for avoiding shipping cost discrepancies and ensuring inventory accuracy.
Integrate seamlessly into workflows: Their low-profile design allows easy pallet jack movement onto the scale platform.
Massive scales typically offer a range of capacities and features tailored for logistics:
High Capacities: Options commonly range from 600 kg (1323 lbs) up to 3000 kg (6614 lbs) or more, catering to most standard palletized loads.
Precision Accuracy: Look for increments as fine as 0.2 kg for lighter capacity scales, scaling to 1 kg increments for the heaviest 3000 kg models. Advanced models achieve ±0.1% accuracy.
Rugged Construction: Painted steel is standard, with stainless steel options available for cold storage or food processing.
Intelligent Indicators: Features include:

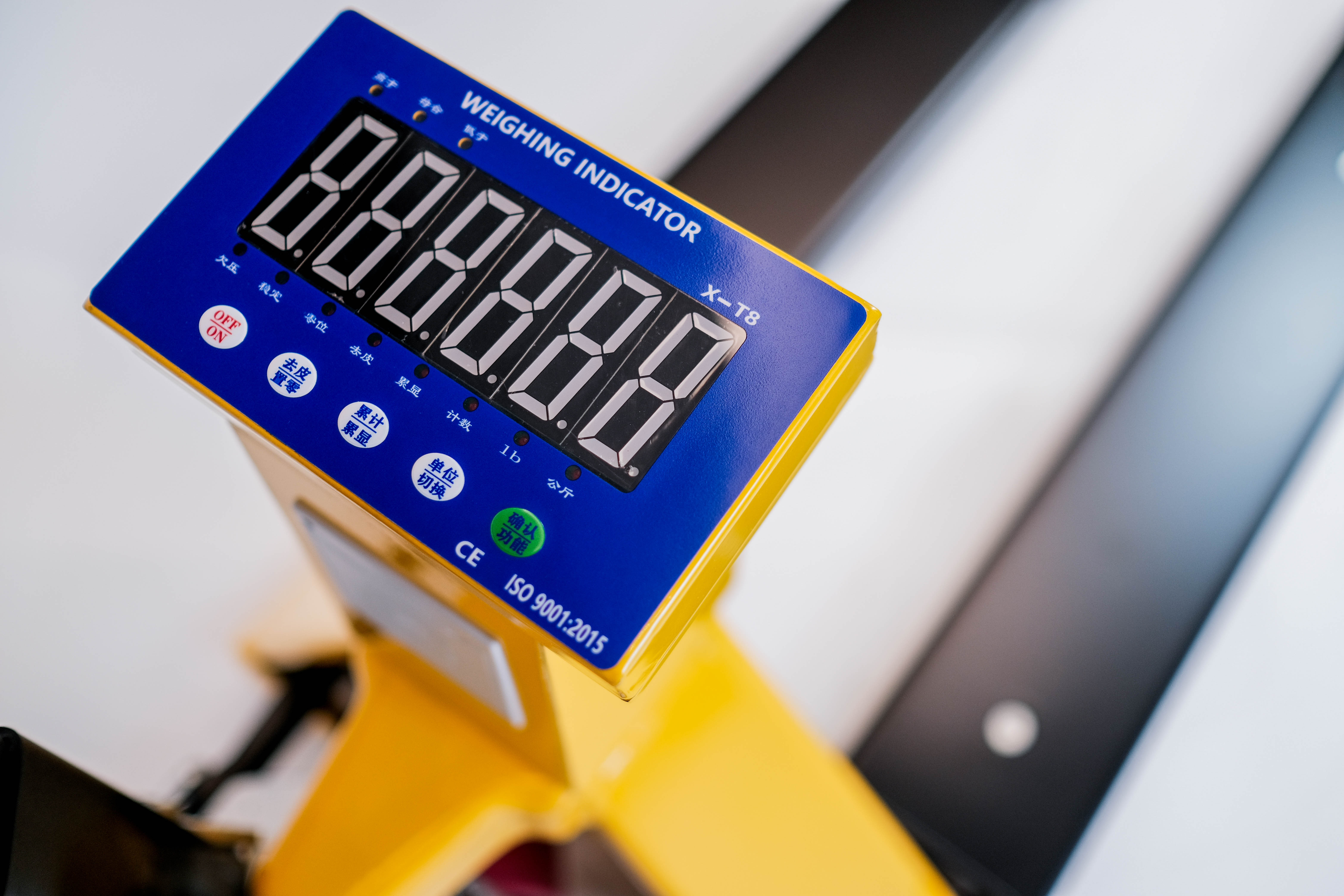

Large, high-contrast backlit LCD displays for visibility in dim warehouses.
Essential Functions: Net/Gross weight, Tare (manual and auto), Peak Hold, Checkweighing (comparing weight to a preset limit).
Advanced Functions: Accumulated weighing , simple piece counting.
Power Options: Integrated rechargeable batteries offering long autonomy (up to 70 hours in some comparable scales), plus AC adapters for continuous use.
Durability Ratings: Look for IP65 or higher ratings, ensuring protection against dust and water jets, which is vital for washdown areas or dusty warehouses.
1. Preparation is Key: Setting Up for Success
Choose the Right Location:
Find a Hard, Level Surface: This is non-negotiable. Concrete floors are ideal. Avoid uneven ground, grating, or surfaces that flex. An unlevel scale guarantees inaccurate readings.
Ensure Adequate Space: Allow enough clearance around the scale for safe pallet jack maneuvering onto and off the platform. Remember the "working triangle" – scale, operator, and pallet storage/pickup point.
Minimize Environmental Interference: Position away from strong air currents (doors, HVAC vents), excessive vibration sources (large machinery, busy forklift routes), and extreme temperature fluctuations if possible.
Inspect the Scale (Pre-Use Check):
Visual Inspection: Look for any obvious damage – cracks (especially in welds), dents, loose or missing parts, significant debris on the platform or load cells.
Check Load Cells: Ensure nothing is physically obstructing the load cells underneath the platform.
Battery/Power: Ensure the indicator has sufficient charge or is plugged in. A low battery can affect performance.
Calibration Check (Periodic):
While not needed before every single use, regular checks with a known test weight (within the scale's capacity) are crucial for maintaining accuracy. Schedule formal calibrations according to Massive's recommendations or your internal quality procedures.
2. Powering On & Initialization
Turn on the indicator (usually a prominent ON/OFF button).
Allow the scale to complete its startup sequence. The display will typically show zeros or dashes before settling to zero.
Zero the Scale: Ensure the platform is completely empty. Press the Zero or Tare button. The display should read 0 (or the designated zero indicator). If it doesn't settle to zero, recheck the platform for debris and ensure it's on a stable surface.
3. Performing a Weighing Operation
Position the Pallet Jack: Carefully maneuver your pallet jack (manual or electric) so its forks are centered and aligned with the scale platform.
Move Onto the Scale Smoothly: Roll the pallet jack smoothly and steadily onto the scale platform. Avoid jerky movements or impacts.
Position the Pallet: Center the load as much as possible on the platform. Ensure the entire pallet jack (wheels included) and the pallet itself are fully on the scale platform. No overhang!
Stabilize: Allow the load to settle completely. Vibrations from movement or nearby machinery can cause the weight reading to fluctuate. Modern scales like Massive's incorporate advanced digital filtering to minimize this, but allowing a moment for stabilization is still best practice.
Read the Weight: Once the display stabilizes (the stability indicator, if present, lights up), record the Gross Weight displayed.
Taring for Net Weight (If Needed):
If you need the weight of the goods excluding the pallet and pallet jack, you must Tare.
With only the empty pallet and pallet jack positioned stably on the scale, press the Tare button. The display should reset to 0. The scale has now "memorized" the weight of the pallet and jack.
Carefully load your goods onto the pallet while it remains on the scale. The display will now show the Net Weight of the goods only.
Using Advanced Functions:
Accumulating Total Weight (Totaling): Useful for weighing multiple pallets going to the same shipment. After weighing the first pallet, press the + or Total button. The weight is added to the total memory, and the display typically resets to zero for the next pallet. Repeat for each pallet. Press Total again to view the cumulative weight.
Checkweighing: Set high and/or low weight limits. The scale will indicate (often with LEDs or specific messages) if a weighed pallet is within tolerance, underweight, or overweight.
Piece Counting: Requires knowing the weight of a single item. Place a sample quantityon the scale, enter the known quantity, and the scale calculates the unit weight. You can then add large quantities, and the scale will display the total number of pieces.
4. Completing the Weighing & Moving Off
Record the final weight(s) manually or ensure data is transmitted if your system is integrated.
Carefully maneuver the pallet jack straight off the scale platform. Avoid turning the wheels sharply while still partially on the scale, as this can cause side-loading damage to the load cells.
If finished, power down the indicator to conserve battery life. If using AC power, it can typically remain on.
Like any precision instrument, pallet scales need regular care:
Keep it Clean: Regularly sweep off dirt, debris, and especially spilled liquids. For stainless steel models in washdown areas, use appropriate cleaners. Never use high-pressure hoses directly on the scale or indicator.
Protect from Overload & Impact: NEVER exceed the scale's rated capacity. Dropping heavy loads onto the platform or ramming into it with pallet jacks/forklifts can permanently damage load cells and structure. Train operators accordingly.
Check Condition Frequently: Incorporate a visual inspection of the scale and indicatorinto regular warehouse equipment checks.
Lubrication (If Applicable): While modern load cells generally don't require user lubrication, refer to your Massive manual. Any mechanical jack components used near the scale should be kept lubricated.
Battery Care: Follow Massive's guidelines for charging the internal battery. Avoid fully depleting it regularly. If storing the scale unused for long periods, charge the battery periodically.
Scheduled Calibration: This is critical. Annual calibration by a qualified technician is a minimum recommendation for most operational environments.
More frequent calibration might be needed in high-precision or harsh applications. Consider service contracts that include preventative maintenance and calibration.
Professional Repairs Only: If damage occurs or the scale malfunctions, stop using it immediately. Repairs should only be performed by authorized Massive service personnel using genuine parts. Unauthorized modifications or repairs void warranties and compromise safety.
Ignoring safety can lead to catastrophic equipment failure, damaged goods, or severe injury:
NEVER Exceed Rated Capacity: The scale's maximum load is an absolute limit. Overloading permanently damages the scale and creates a major safety hazard.
ONLY Use on Hard, Level Surfaces: Using a pallet scale on soft, uneven, or sloping ground is dangerous and guarantees inaccurate readings. If you can't find level ground, don't weigh.
Avoid Side-Loading & Impacts: Loads must be centered and placed/removed smoothly. Forklifts or pallet jacks should drive straight on and off. Never turn wheels while heavily loaded on the scale. Never drop loads onto the platform.
Keep Hands/Fingers Clear: Be mindful of pinch points, especially when maneuvering pallet jacks onto the low-profile platform.
Environmental Limits: Operate within the specified temperature and humidity ranges. Protect the indicator from direct rain/snow unless it has a specific high IP rating for that.
No Modifications: DO NOT drill into, weld onto, or otherwise modify the scale structure or indicator. This compromises integrity and voids warranties.
Your Massive Pallet Scale is a significant investment in warehouse efficiency and accuracy. By following this comprehensive guide,you ensure this investment pays dividends for years to come.
Remember, accuracy starts with a level surface, safety starts with respecting rated capacities, and longevity starts with proactive care and professional calibration. Integrate your Massive scale intelligently into your workflows, leverage its advanced functions, and watch your logistics operations become smoother, more cost-effective, and more reliable.
Ready to optimize your weighing? To explore the full range of Massive Pallet Scales and discover the perfect solution for your warehouse's capacity, precision, and durability needs. Download spec sheets, compare models, and contact their experts for personalized advice.
