Platform scales, also known as floor scales, are the unsung workhorses of countless industries. From bustling warehouses and manufacturing floors to farms and logistics hubs, these robust weighing instruments provide the critical data needed for inventory control, shipping accuracy, production batching, and quality assurance. At MASSIVE, a leading manufacturer since 2003, we specialize in engineering platform scales that deliver uncompromising precision, exceptional durability, and reliable performance in demanding environments. But how exactly do these vital tools function? Let's delve into the mechanics and applications of MASSIVE platform scales.

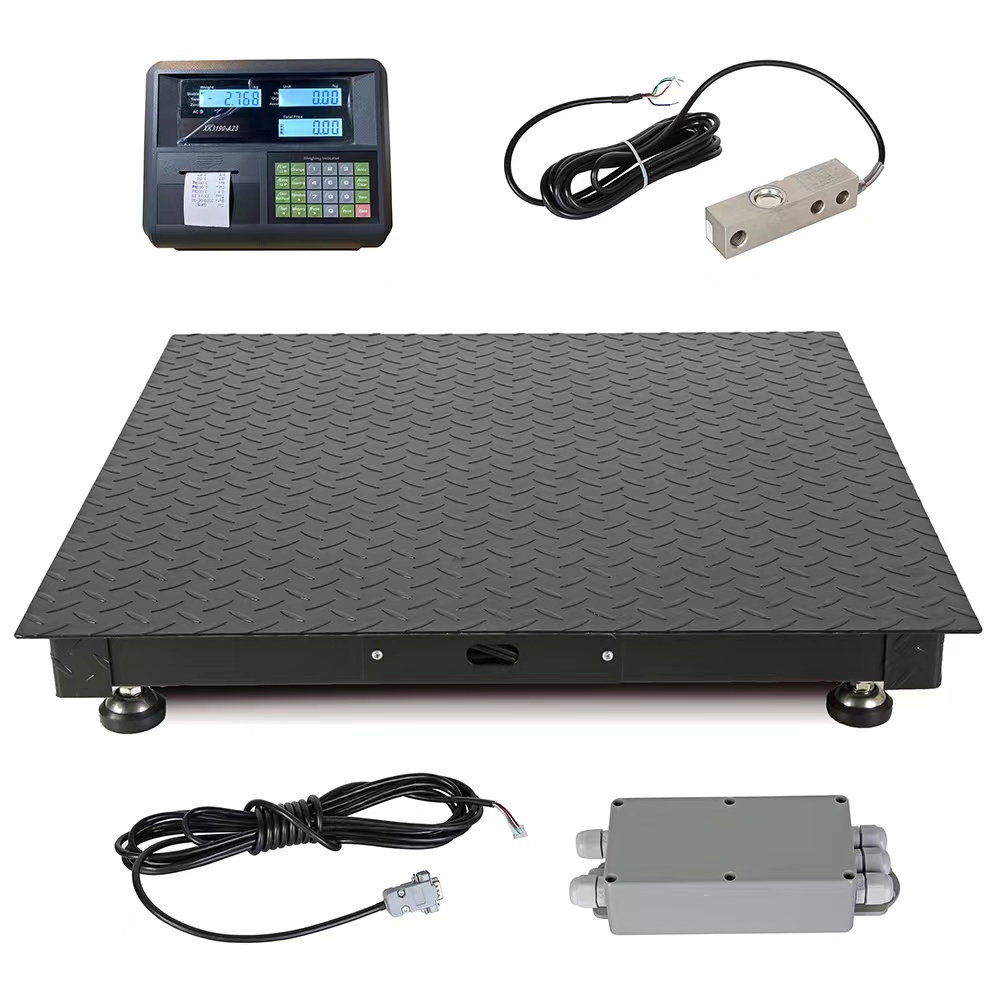

At the heart of every MASSIVE platform scale lies its load cell system. This is the critical component that transforms force (weight) into an electrical signal.
1.The Strain Gauges: Within each load cell are tiny sensors called strain gauges. These are essentially very fine wires or foil arranged in a specific pattern and bonded securely to a sturdy metal element (often made from high-strength alloy steel).

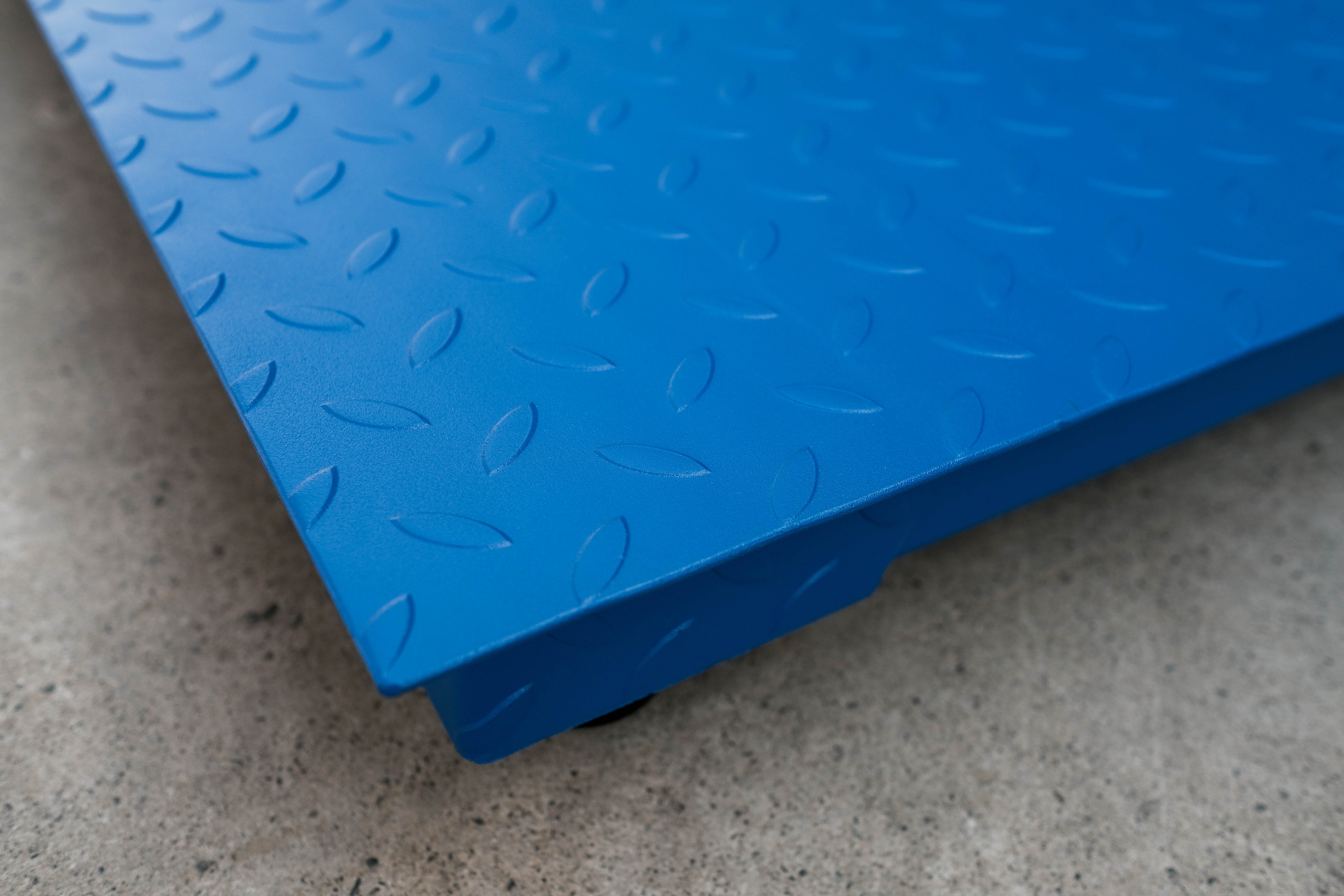

2.Applying Weight: When an object is placed on the scale's robust weighing platform (typically constructed from Q235B Carbon Steel or highly corrosion-resistant 304 Stainless Steel), the force is transferred through the structure to the load cells positioned at strategic points underneath.
3.Deformation & Resistance Change: The applied weight causes the metal element in the load cell to deform slightly. This deformation stretches or compresses the strain gauges attached to it. As the gauge wires stretch, their electrical resistance increases. When compressed, their resistance decreases.
4.Wheatstone Bridge Circuit: The strain gauges are wired into a precise electrical configuration called a Wheatstone bridge. The changes in resistance caused by the weight distort the balance of this bridge circuit.
5.Electrical Signal Output: The imbalance in the Wheatstone bridge creates a small, proportional millivolt (mV) electrical signal. This signal is incredibly tiny and needs significant amplification.
The raw signal from the load cells needs processing to become the clear digital weight you see on the display:
1.Signal Amplification: The weak mV signal is sent to a high-precision amplifier within the scale's industrial-grade junction box or indicator. This amplifier boosts the signal strength significantly while maintaining its proportional accuracy.
2.Analog-to-Digital Conversion (ADC): The amplified analog signal is then fed into an Analog-to-Digital Converter (ADC). This crucial component translates the continuous voltage signal into discrete digital numbers that a microprocessor can understand. The resolution of the ADC (e.g., 24-bit) is key to the scale's precision.
3.Microprocessor Calculation: The digitized signal is processed by the scale's microprocessor. This "brain" applies calibration factors (stored during the scale's initial calibration) to convert the digital signal into an accurate weight reading. It also handles functions like tare (zeroing out the weight of containers), unit conversion (kg, lb, etc.), and potentially counting pieces if the average piece weight is known.

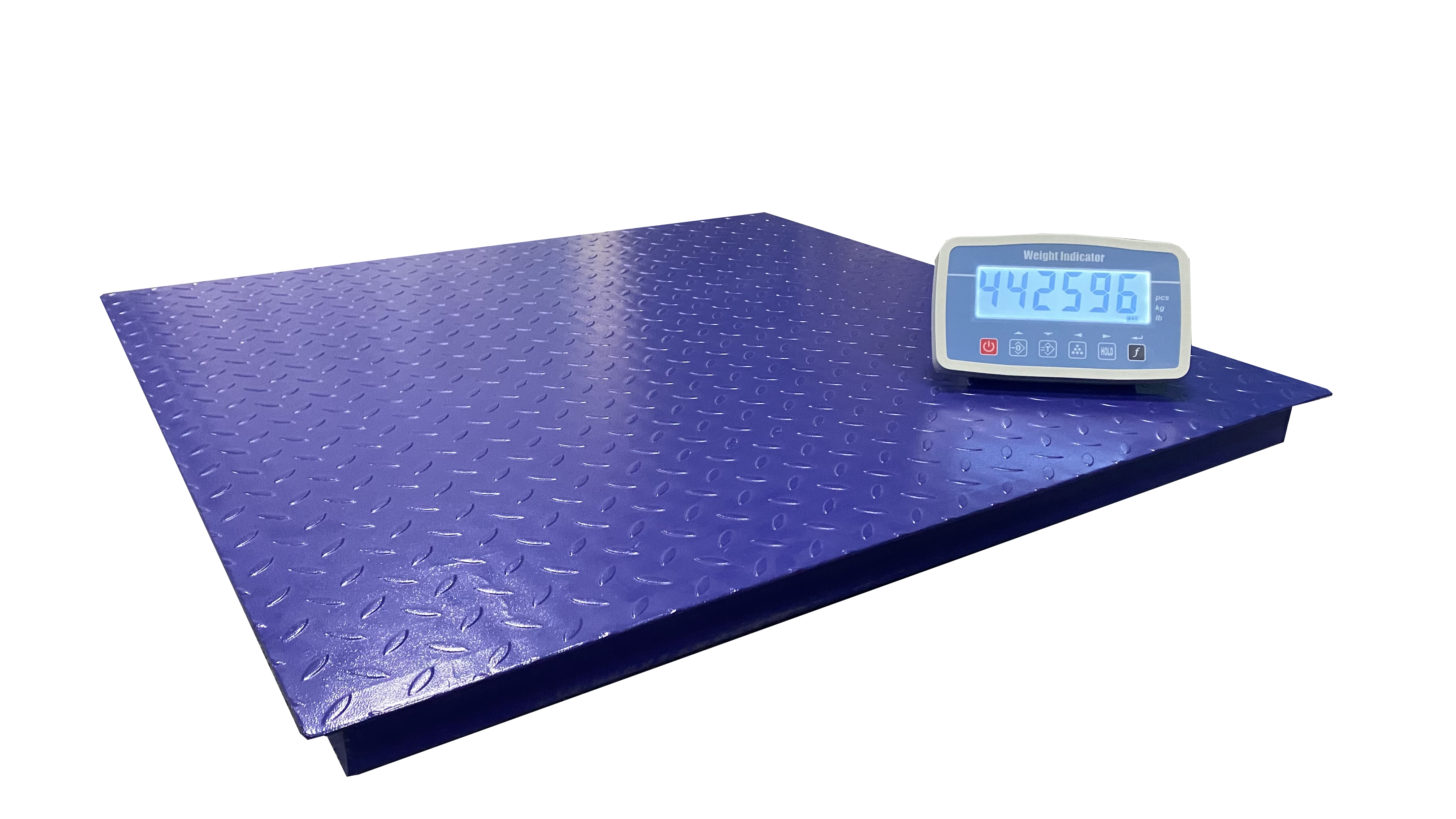

4.Display: The final calculated weight is sent to the large, easy-to-read LCD display, prominently visible even in busy or low-light industrial settings.
Not all platform scales are created equal. Industrial environments demand instruments built to last and perform reliably under pressure. MASSIVE scales are engineered for this:
Rugged Construction: Utilizing Q235B Carbon Steel for cost-effective strength or 304 Stainless Steel for superior corrosion resistance (crucial in food processing, chemicals, marine environments), MASSIVE platforms withstand heavy impacts, abrasion, and harsh conditions.
High-Capacity Load Cells: Precision-engineered load cells deliver exceptional accuracy (±0.05% or better is common) and long-term stability even at maximum capacity.
IP67 Protection (Common on MASSIVE Models): This ingress protection rating signifies the scale is completely dust-tight and can withstand immersion in water up to 1 meter deep for 30 minutes. Essential for washdown areas, outdoor use, or dusty workshops. Check specific model specs for exact IP rating.
Low Profile & Ramps: Designed for easy loading with pallet jacks or forklifts, minimizing the effort and risk of damage during operation.
Clear, Large Display: Ensures weight readings are instantly visible from a distance, improving workflow efficiency and safety.
Versatile Connectivity: Many MASSIVE scales offer options for RS232, RS485, USB, or 4-20mA outputs, allowing seamless integration with printers, PCs, PLCs, and warehouse management systems (WMS).
The robustness and precision of MASSIVE platform scales make them indispensable in numerous sectors:
Warehousing & Logistics: Accurately weighing palletized goods for shipping costs, inventory control, and load distribution checks on trucks. Ensuring compliance with transport regulations.
Manufacturing: Weighing raw materials for production batches, finished goods for quality control and packaging, and monitoring work-in-progress. Vital for recipe consistency and cost control.
Agriculture & Farming: Weighing livestock, produce (bales, sacks, bins), feed, and fertilizer. Essential for yield tracking, sales, and resource management.
Recycling & Waste Management: Determining the weight of scrap metal, paper, plastic, or general waste for billing, recycling quotas, and landfill management.
Food & Beverage Processing: Where 304 Stainless Steel construction and IP67 sealing are critical for hygiene. Weighing ingredients, bulk products, and packaged goods, often requiring integration with production lines.
Construction: Weighing building materials (sand, gravel, rebar), equipment, and demolition debris on tough job sites.
Selecting the ideal platform scale involves considering several factors:
Capacity: What is the maximum weight you need to measure? MASSIVE offers scales ranging from 500kg up to 10 tons or more. (Reference specific capacities like the 300kg model mentioned on the site).
Precision (Readability): What is the smallest weight increment you need? (e.g., 50g, 100g, 200g, 0.2kg, 0.5kg). Higher precision is crucial for expensive materials or small batch differences.
Platform Size: Must accommodate the typical items being weighed (e.g., pallet dimensions, largest bins). Standard sizes exist, but custom sizes are often available from MASSIVE.
Construction Material: Q235B Carbon Steel is economical and strong for general industrial use. 304 Stainless Steel is mandatory for corrosive environments, food, or high-hygiene applications.
Environmental Protection (IP Rating): Choose IP67 for washdown, outdoor, or very dusty areas. Lower IP ratings may suffice in clean, dry warehouses.
Required Features: Do you need digital connectivity, remote display, battery operation for portability, or specific legal-for-trade approvals? Discuss your needs with MASSIVE.
Portability: While inherently robust, some MASSIVE platform scales are designed with integrated forklift pockets or are lighter gauge for easier relocation within a facility.
Understanding how platform scales work highlights the precision engineering required for reliable industrial performance. At MASSIVE, with our dedicated factory, stringent quality management systems, and commitment to superior craftsmanship, we build platform scales designed to endure and deliver accurate results day in, day out. From the initial pre-sale consultation to comprehensive after-sales support, calibration, and repair, MASSIVE is with you all the way.
