Massive Platform Scales handle pallets and heavy machinery with ease in demanding environments.

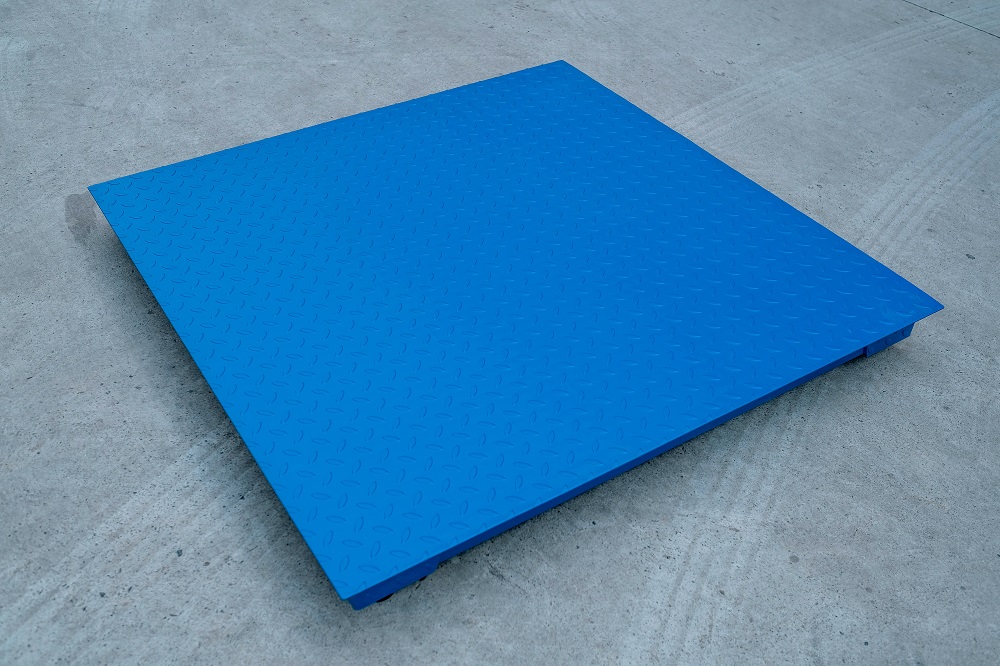

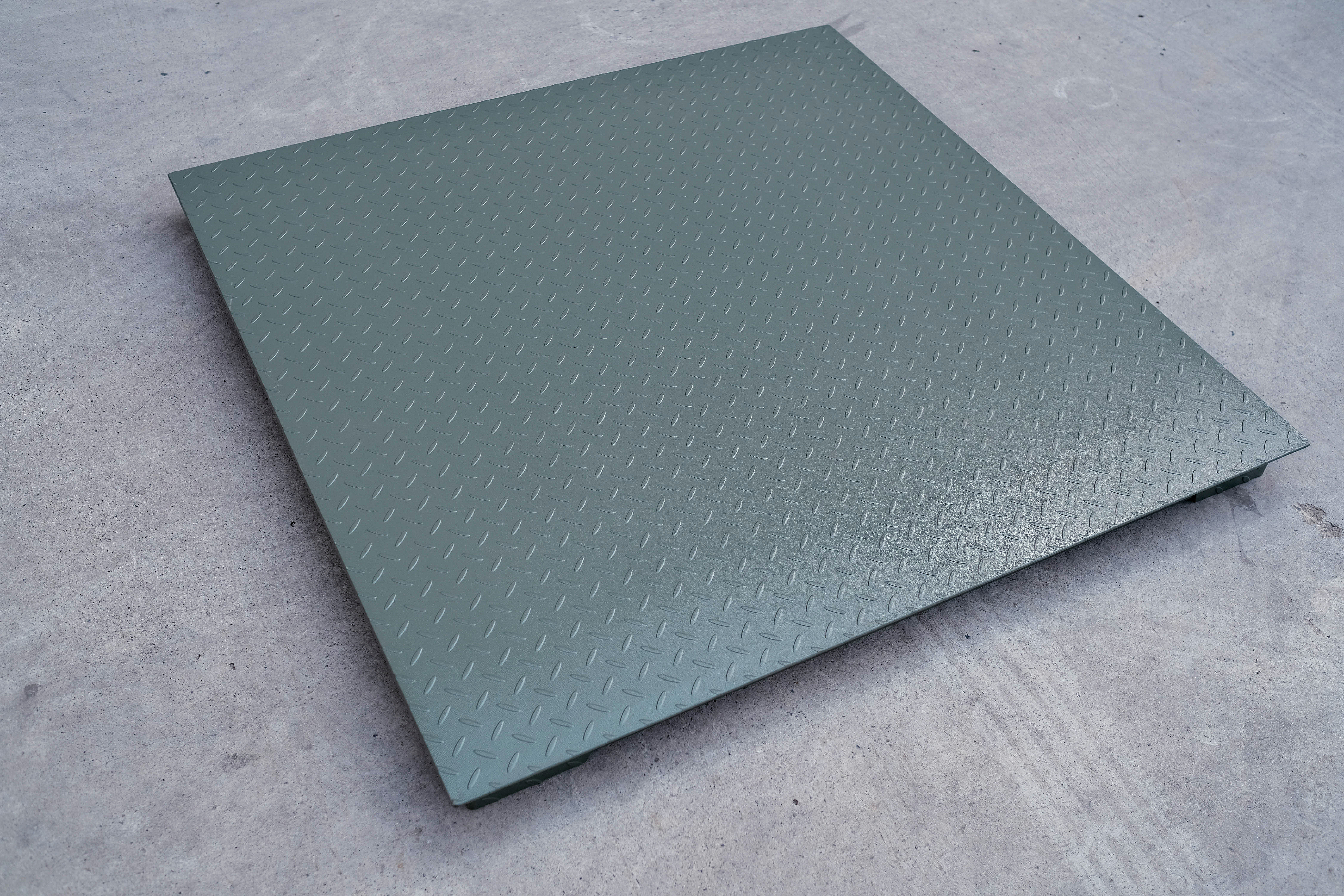

Platform weighing scales, also known as floor scales, are the backbone of industrial operations requiring heavy-duty measurement. Massive’s 1000kg capacity platform scales combine robust engineering with 0.1kg precision to deliver reliable performance in manufacturing, logistics, and warehousing. Unlike bench scales, these rugged platforms accommodate oversized items, palletized goods, and industrial machinery with their low-profile design (50-80mm height) and expansive 1m x 1.2m stainless steel weighing surface.
Massive scales utilize hermetically sealed shear beam load cells protected by Q235B carbon steel or 304 stainless steel frames (IP66 rated). This ensures accuracy (±0.05% F.S.) even in:
Dusty manufacturing plants
Humid cold storage facilities
High-traffic loading docks
Case Study: A Vietnamese seafood exporter reduced weight-based disputes by 90% after deploying Massive scales with auto-tare and dynamic weighing features for moisture-heavy frozen products.
4mm thick diamond-tread steel plate resists impact deformation
Welded seam construction prevents debris/water ingress
Overload protection up to 150% capacity (1500kg surge safety)
| Industry | Use Case | Massive Scale Feature |
|---|---|---|
| Manufacturing | Raw material batching | RS232/RS485 output for PLC integration |
| Logistics | Freight cost calculation | Legal-for-Trade OIML Class III certification |
| Waste Recycling | Scrap metal weighing | Shock-resistant load cells |
| Agriculture | Livestock/feed measurement | Corrosion-resistant 304 SS models |

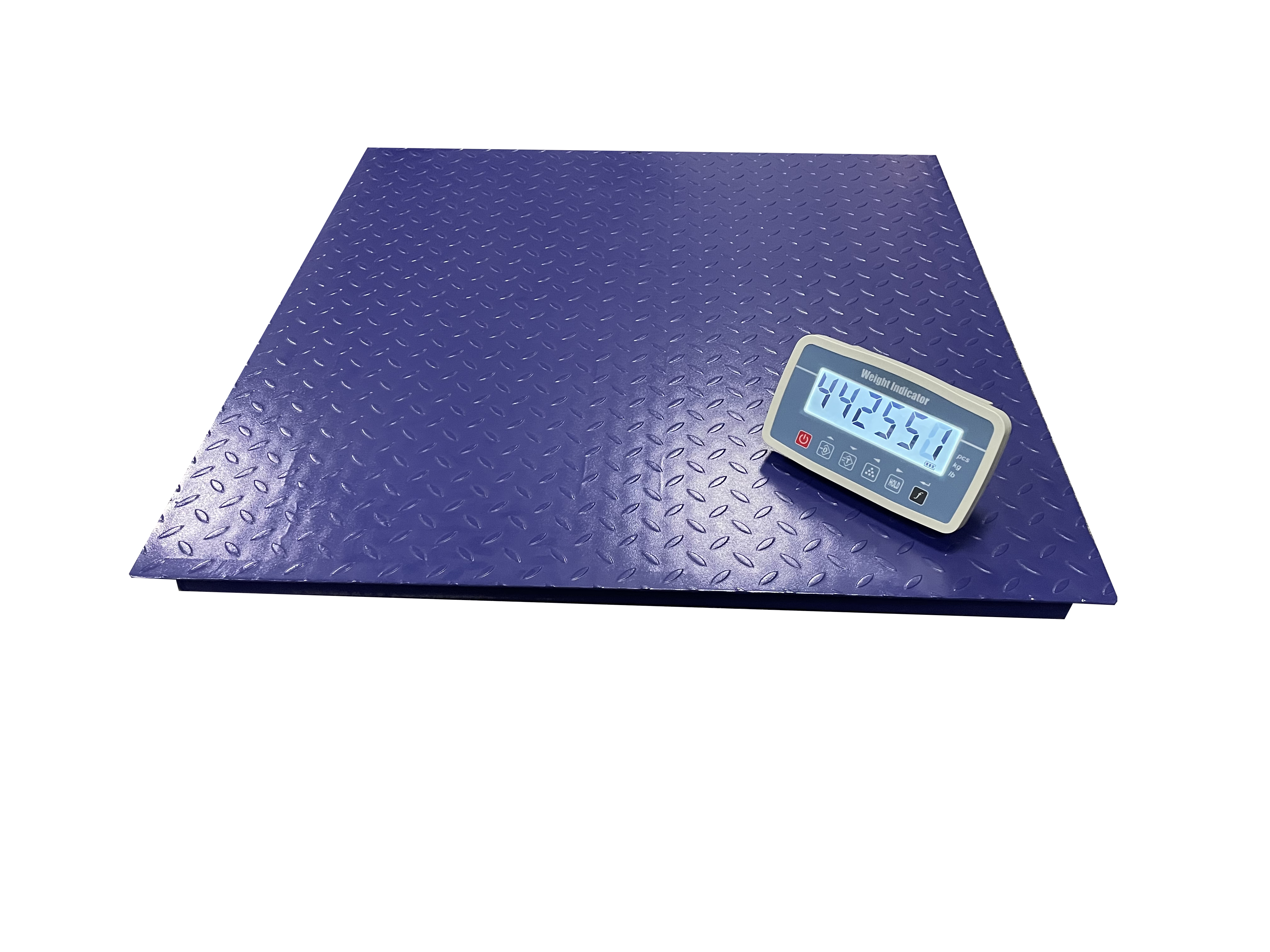

Pro Tip: Pair with Massive’s Wireless Indicator (WD-4) for remote data logging and real-time inventory tracking.
Consider these specs for your 1000kg scale:
1.Surface Material
304 stainless steel: Ideal for food/pharma (FDA compliant)
Powder-coated carbon steel: Cost-effective for general industry
2.Load Cell Protection
Opt for double Cbielec WRE designs in high-moisture areas
3.Connectivity
USB/Bluetooth for mobile reporting
4-20mA analog for legacy systems
Factory Direct Pricing: 20-30% lower than resellers (verified by B2B review site)
15-Year Load Cell Warranty: Longest in the industry
Customization: Modify dimensions, ramps, or I/O ports (Request custom quote)
Endorsement: "We replaced 3 competitor scales with Massive units 5 years ago. Zero calibration drift despite daily acid washdowns." – Production Manager, Chemical Plant
1.Monthly: Check for debris under platform
2.Quarterly: Verify corner accuracy with test weights
3.Annually: Professional recalibration
Free Resource: 10-Point Platform Scale Inspection Guide
platform weighing scales deliver unmatched durability and precision for industrial operations. With capacities up to 5,000kg available and ISO 9001-certified manufacturing, they represent a long-term ROI solution.
