When investing in industrial weighing equipment, one of the most critical questions buyers ask is: What is the dimension of a floor scale? At Massive Weighing, we understand that dimensions are not just numbers—they directly impact workflow efficiency, space optimization, and operational safety. In this guide, we’ll break down everything you need to know about floor scale dimensions, how to choose the right size for your needs, and why Massive’s designs stand out in the premium weighing market.
Floor scales are workhorses in industries like logistics, manufacturing, agriculture, and pharmaceuticals. Their dimensions determine:
Capacity-to-Size Ratio: Larger scales typically handle heavier loads, but smart engineering (like our Double CBIELEC WRE structure) allows compact designs to weigh up to 10 tons.
Space Efficiency: A poorly sized scale can disrupt workflows. For example, a 1.5m x 1.5m scale might overcrowd a small warehouse aisle.
Safety: Oversized scales in tight spaces increase collision risks, while undersized ones may compromise weighing accuracy.
Massive offers customizable floor scales, but here are our most popular models:
| Model | Dimensions (L x W) | Capacity | Ideal For |
|---|---|---|---|
| MF-1000 | 0.8m x 0.8m | 1,000kg | Small parts, labs, retail |
| MF-3000 | 1.2m x 1.2m | 3,000kg | Pallet weighing, workshops |
| MF-5000 | 1.5m x 1.5m | 5,000kg | Bulk materials, agriculture |
| MF-10000 | 2.0m x 1.2m | 10,000kg | Heavy machinery, logistics |
Note: All Massive floor scales feature a 4mm carbon steel plate for durability and an IP67-rated junction box for harsh environments. Explore our full range here >
Higher capacities require reinforced structures. For instance, our MF-10000 (10-ton capacity) uses a modular design with thicker steel plates and cross-beams to distribute weight evenly.
Food & Pharma: Stainless steel scales with smaller footprints (1.2m x 1.2m) for hygienic, washdown environments.

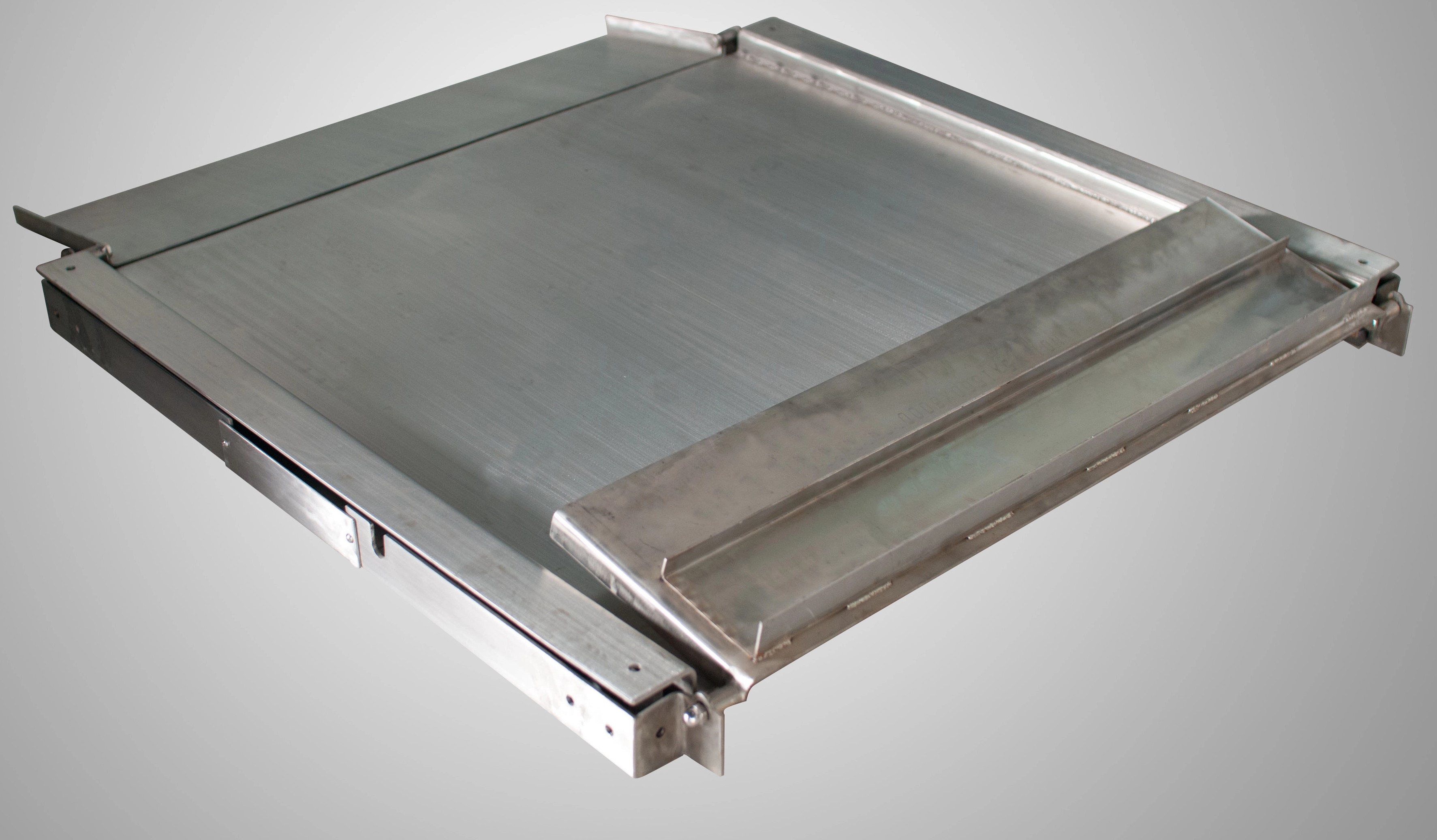

Logistics: Low-profile scales with ramps for easy pallet jack access.
Measure doorways, aisle widths, and ceiling heights. Our engineers recommend leaving at least 0.5m clearance around the scale for safe operation.
A German auto parts manufacturer needed to weigh engine blocks (up to 2,500kg) in a cramped workshop. Massive’s solution:
Custom MF-2500 scale (1.0m x 0.8m) with reinforced edges.
Portable design with retractable wheels for storage.
Result: 30% faster workflow and zero space-related downtime.
Define Your Maximum Load: Include potential future needs.
Map Your Workspace: Use our free Floor Scale Layout Planner.
Consider Accessibility: Opt for ramps or low-profile designs if using pallet jacks.
Prioritize Safety: Anti-slip surfaces and rounded corners (standard on all Massive scales).
Thickened Steel Frames: Our 4mm carbon steel plates outperform industry-standard 3mm designs, enabling slimmer profiles without sacrificing durability.
Precision Load Cells: Patented CBIELEC WRE technology ensures accuracy (±0.05% FS) even in compact scales.
Customization: Need a non-standard size? Our factory offers bespoke dimensions with a 15-day lead time.
Q: Can I install a floor scale outdoors?
A: Yes! Massive’s IP68-rated scales (e.g., MF-5000-IP68) withstand rain, dust, and temperature swings.
Q: How thick is the platform?
A: Ranges from 50mm (low-profile) to 120mm (heavy-duty).
Q: Do dimensions include ramps?
A: No—ramps add 200-300mm per side. Contact us for exact specs.
Choosing the right floor scale dimensions can be complex. Our experts offer:
Free Site Surveys: 3D modeling to visualize scale placement.
Lifetime Calibration Support: Keep your scale accurate for decades.
Trade-In Program: Upgrade seamlessly as your needs grow.
The dimensions of a floor scale are a balance of science and practicality. At Massive, we combine 30+ years of engineering expertise with a deep understanding of industrial workflows to deliver scales that fit and transform your operations. Whether you need a space-saving 0.8m scale or a rugged 2.0m titan, we’re here to weigh in with precision solutions.
