Economical Weight Indicator

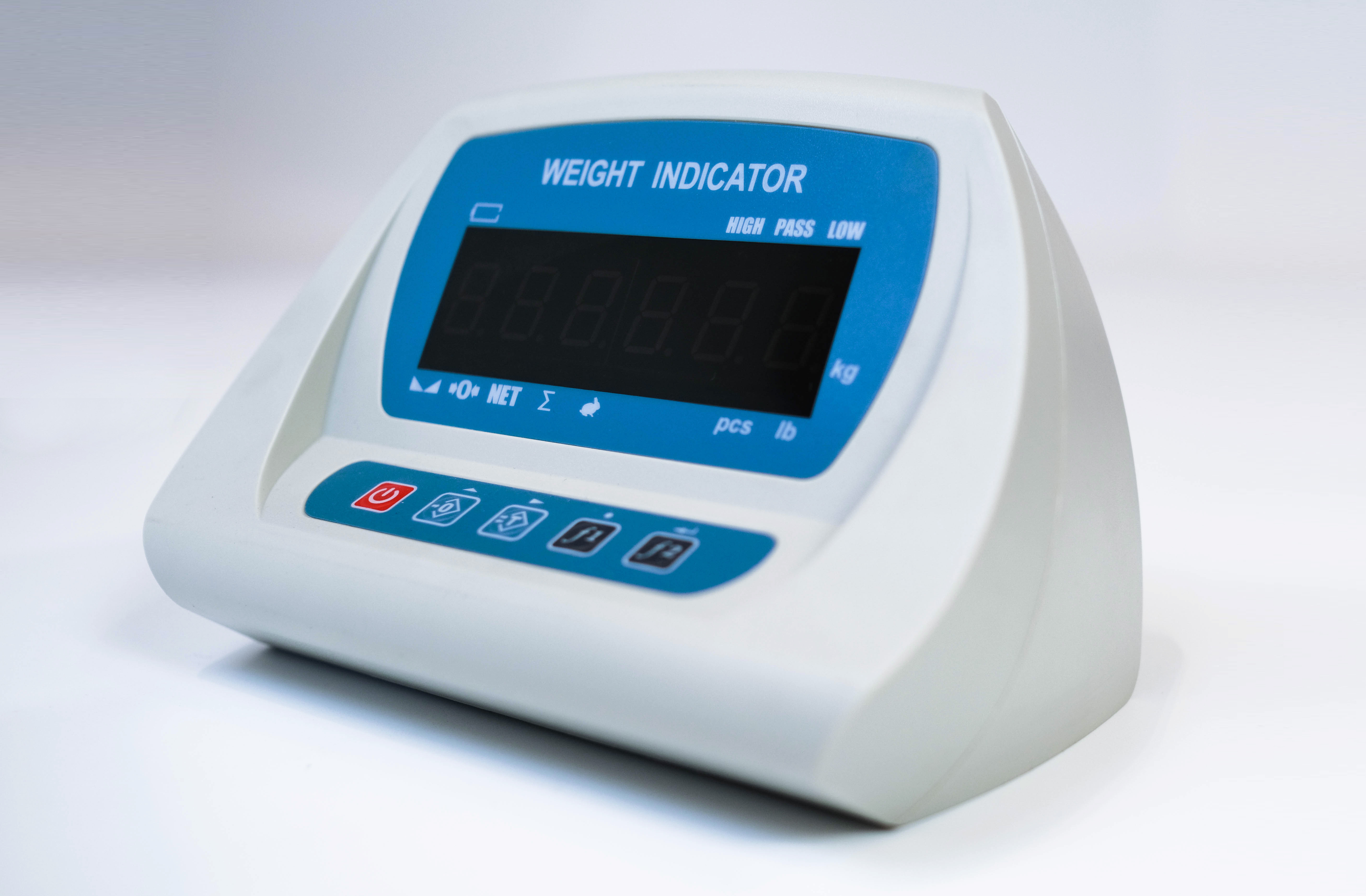

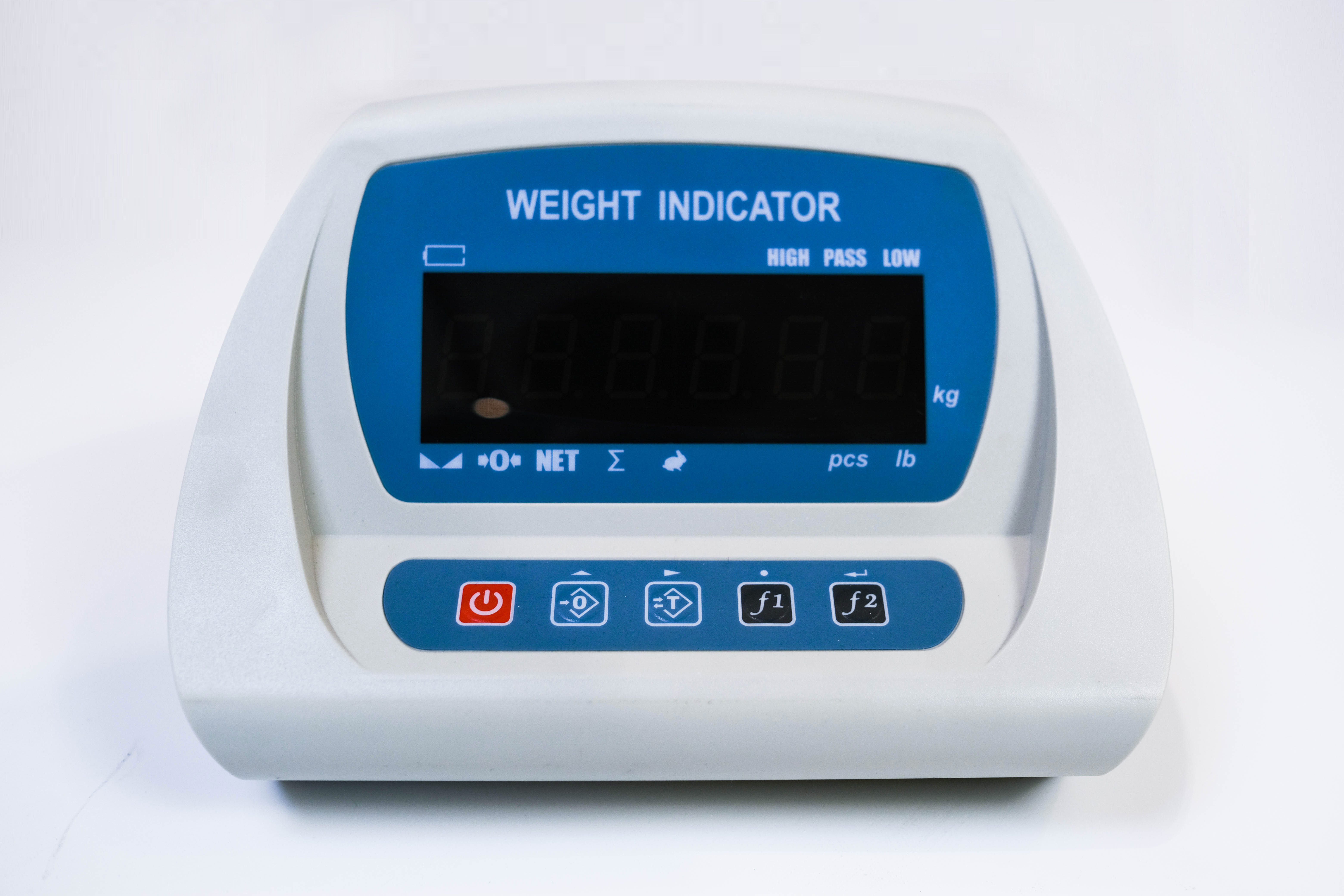

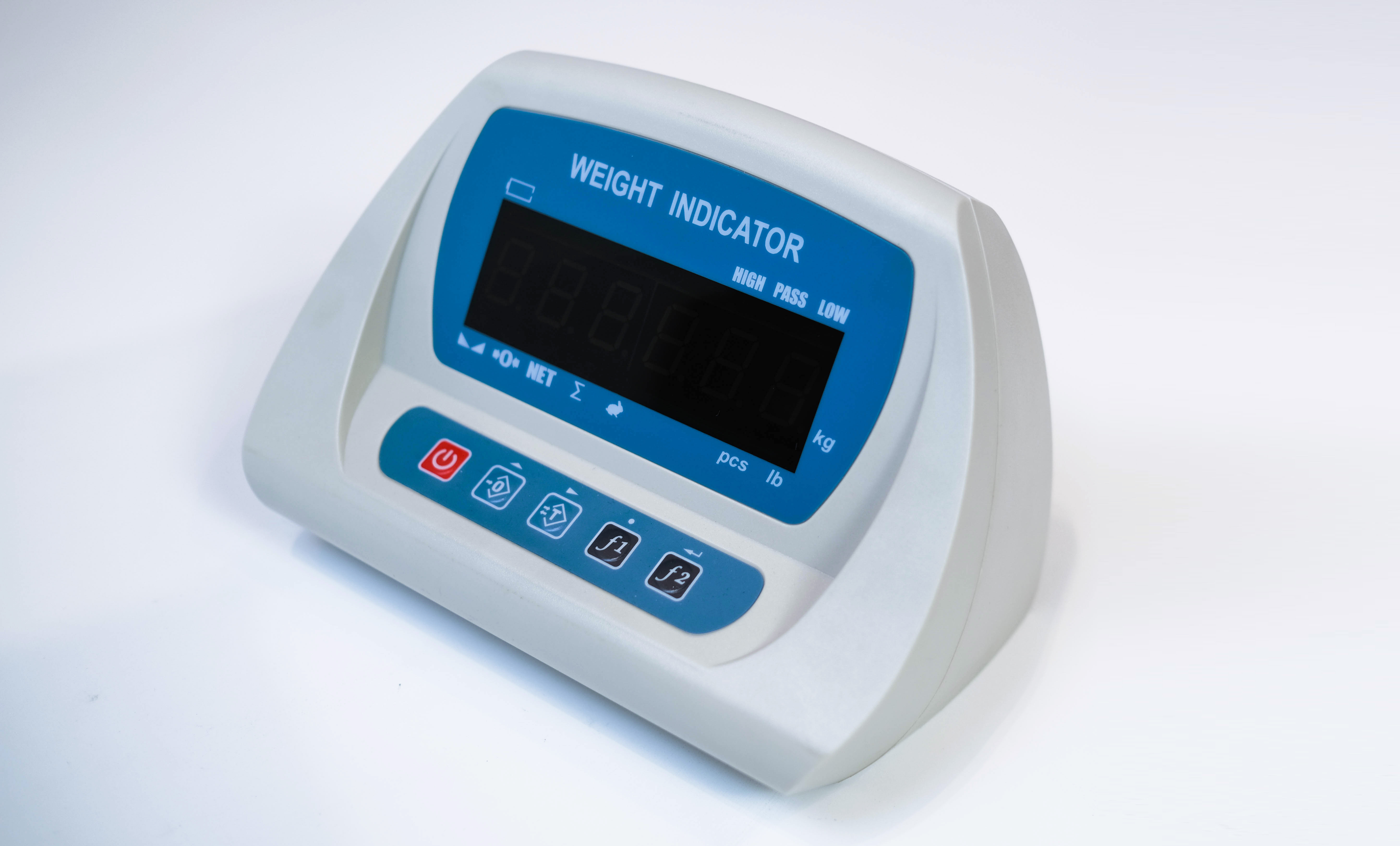

The HF105 Series Economical Weight Indicator offers reliable performance at an affordable price. Designed for basic industrial and commercial weighing tasks, it features a bright LED display, simple 4-key operation, and essential functions such as tare, zero, and unit switch. Compact and user-friendly, the HF105 is ideal for bench and floor scales. With stable output and optional RS232 communication, it provides a cost-effective solution for everyday weighing needs.
  • HF105 Series

  • Massive Weighing

Availability:
Quantity:

Features


Economical Weight Indicator——HF105


Economical Weight Indicator
Economical Weight Indicator
Economical Weight Indicator

Key Features:

Enhanced ABS plastic housing

● 6-digit 0.8 inch / 20 mm high-intensity LED display

● 6-digit 0.9 inch / 23 mm LCD display with backlight

● 5-key high-reliability tact switch keypad

● Drives up to 8× 350 ohm loadcells

● Built-in 4 V / 4.0 Ah maintenance-free rechargeable battery

● Structured menu and user-friendly warning messages

● 2 configurable user-defined function keys

● Full-duplex RS-232 communication interface

Various software and hardware options available


Specifications

Economical Weight Indicator

Parameter Value
Accuracy Class Class III (equivalent to OIML R76)
Internal Resolution 16,000,000 counts
Measurement Rate 10 measurements/second
Loadcell Excitation Voltage 3.3 ± 3% VDC (typical)
AC Power Voltage 100–240V AC, 50/60 Hz
Battery Life 70 to 240 hours (typical)
Operating Temperature -10°C to +40°C (+14°F to +104°F)
Operating Humidity 0–90% RH at 20°C
Indicator Net Weight 0.9 kg (2.0 lb)



Options


Options of Economical Weight Indicator


Economical Weight Indicator

Enhanced ABS plastic T-type bracket

RS-485 Communication (8)

BLE4.0 Bluetooth Communication (B)

Real-time Clock with Backup Battery (C)

RF Kit for RF Scoreboard or RF Transmitter (F)

Format Editable Printing (P)

Economical Weight Indicator

Calibration Switch with Seal Protection (S)

Auto Total function (a)

Calibration Counter function (c)

Dual Interval function (i)

Measurement Unit Switch function (m)

Preset Tare function (t)


Video

FAQs


FAQs for Weight Indicator


1. Q: What is a digital weighing indicator and how does it work?

  • A: A digital weighing indicator is the display and control unit used in floor scales, platform scales, and other industrial weighing systems. It receives signals from load cells and converts them into readable weight values, typically shown on an LED or LCD screen. Many weighing indicators also offer features such as tare, accumulation, unit conversion, and connectivity to printers or PCs.

2. Q: Is this weighing indicator compatible with any floor or platform scale?

  • A: Yes, our weighing indicators are designed to work with most floor scales and platform scales that use standard analog load cells (usually 350Ω). Please confirm the excitation voltage and signal range match your scale's specifications for optimal performance.

3. Q: Can the weighing indicator connect to a printer or computer system?

  • A: Absolutely. Most of our weighing indicators come with RS232, RS485, or optional Bluetooth interfaces, allowing seamless data transmission to printers, computers, and warehouse management systems (WMS). This feature is especially useful for applications that require printouts or data logging.

4. Q: Is this indicator waterproof or suitable for outdoor use?

  • A: Our stainless steel weighing indicators are IP67 waterproof, making them ideal for outdoor or washdown environments such as food processing plants, agriculture, or marine operations. They are resistant to dust, water, and corrosion.

5. Q: Does this weighing indicator meet CE or OIML certification standards?

  • A: Yes, all of our industrial weighing indicators are CE and OIML certified, ensuring compliance with international safety and accuracy standards. Documentation is available upon request and OEM/custom logos are supported for qualified orders.
