Weight Indicator With Printer

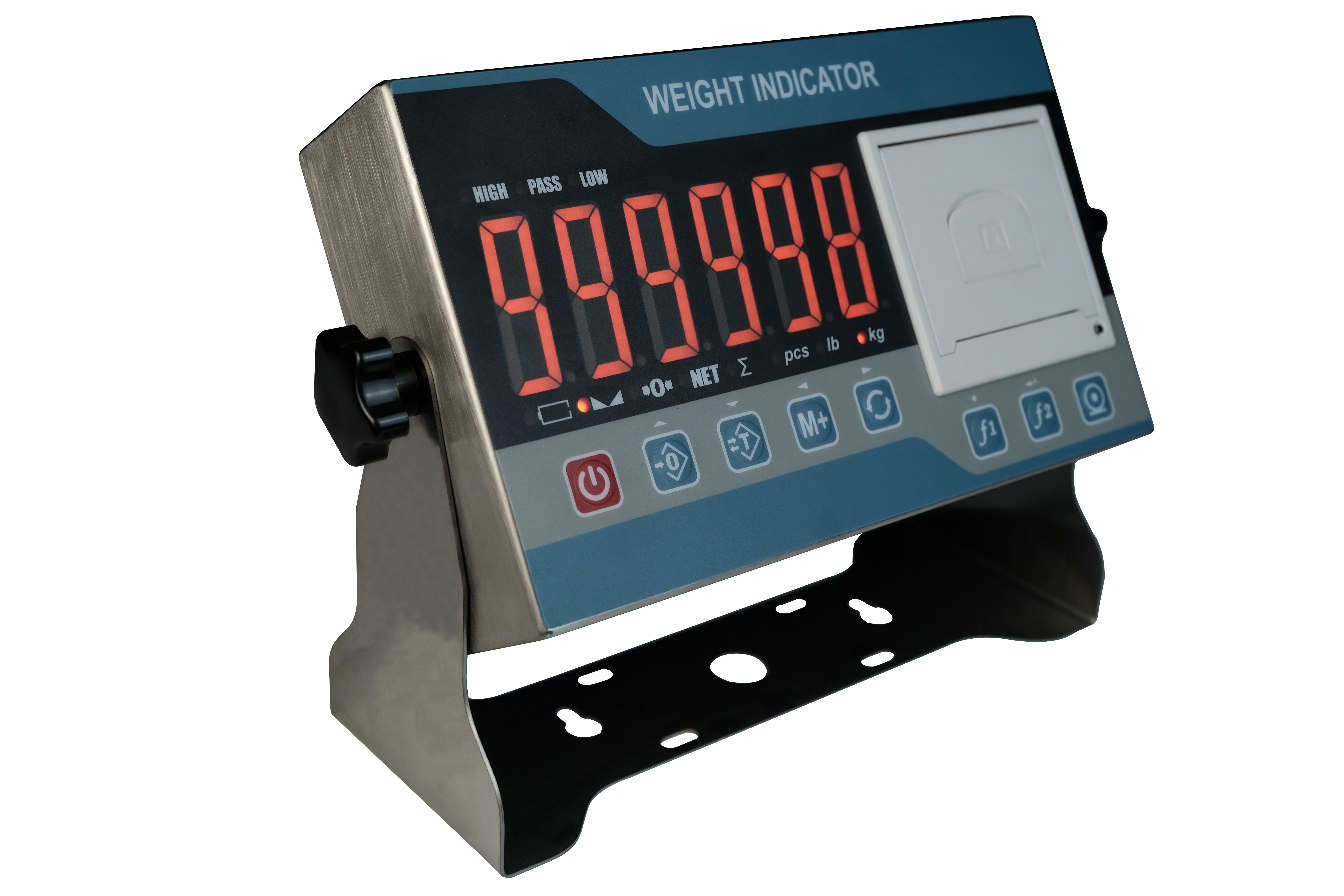

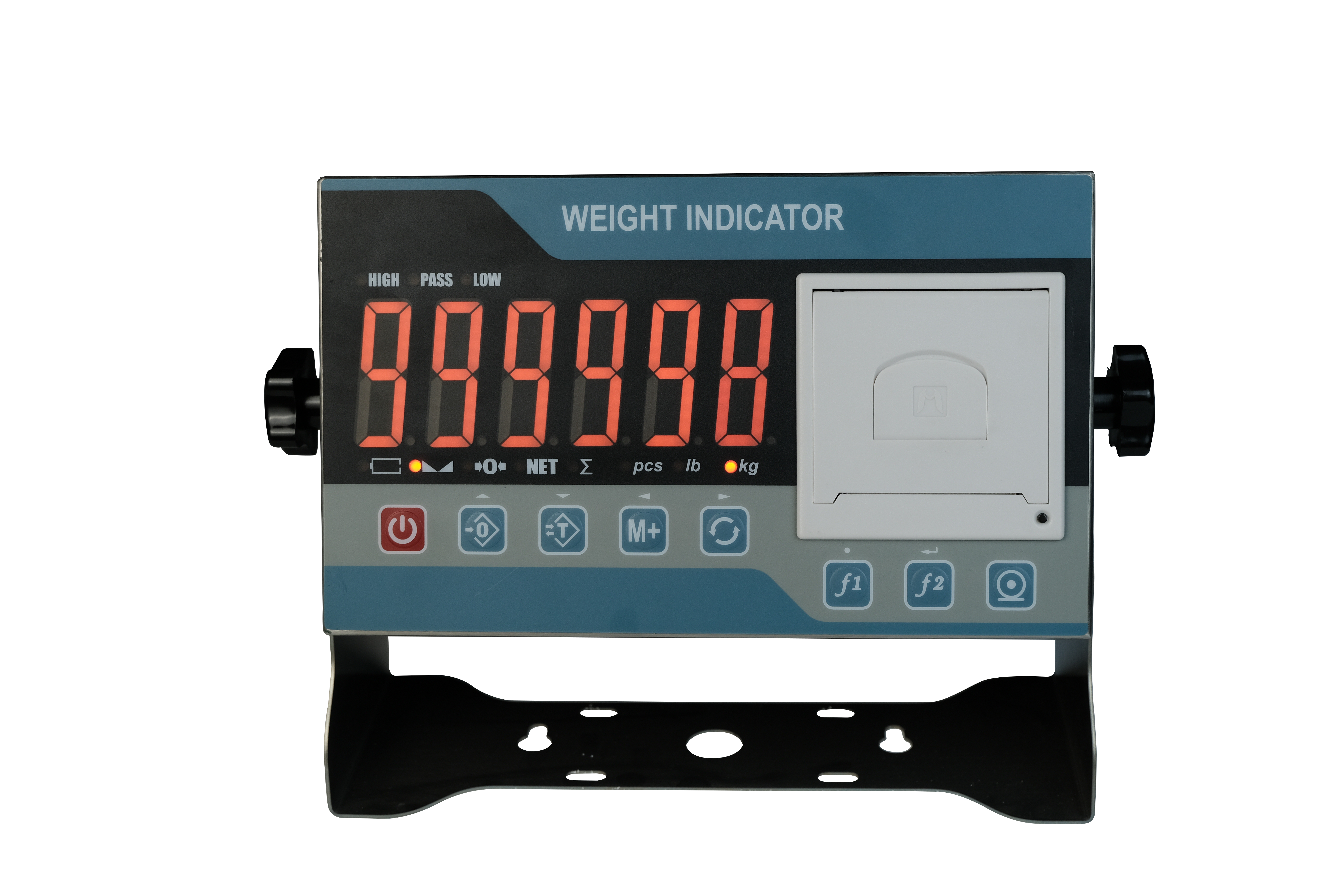

The HF208 Weight Indicator With Printer combines precision weighing and instant printing in one compact unit. Ideal for industrial and commercial applications, it features a high-contrast LCD display, built-in thermal printer, and user-friendly keypad. With support for multiple weighing functions and RS232 communication, the HF208 ensures accurate data capture and efficient on-site printing for labels, tickets, and receipts.
  • HF208 Series

  • Massive Weighing

Availability:
Quantity:

Features


Weight Indicator With Printer——HF208


Weight Indicator With Printer
Weight Indicator With Printer
Weight Indicator With Printer

Key Features:

● SS304 housing and SS304 U-type bracket

● 2 user-defined function keys
● Built-in 58mm thermal label printer with quick paper installation ● Format editable printing with multi-string configuration
● 6-digit 1.85inch / 47mm LED display ● Basic weighing, check-weighing
● 8-button high reliable tact switch keypad ● Structured menu and user-friendly messages
● Drives up to 16x 350Ω loadcells ● Various optional I/O ports
● Single 4/6-wire loadcell application ● Ticket and report printing
● Optional 2x 4x multi-scale weighing ● Barcode, QR code and bitmap printing
● 5-point linearity calibration & zero calibration ● Built-in 3.7V/4Ah li-ion rechargeable battery
● Real-time clock with backup battery ● Universal 100–240Vac power supply
● Full duplex RS-232 communication ● Various software and hardware options

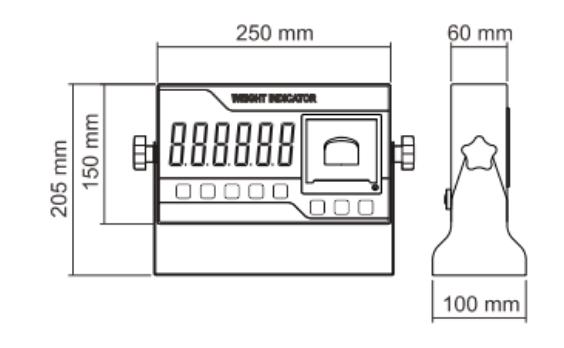

Dimensions

Weight Indicator With Printer

Options

Options of Weight Indicator With Printer

● SS304 T-type bracket for pole mounting

● External PS/2 keyboard input (2)

● RS-485 communication (8)

● Bluetooth BLE communication (B)

● 0–20mA / 0–10V analog output (A)

● RF kit for RF scoreboard or transmitter (F)

Video

FAQs


FAQs for Weight Indicator With Printer


1. Q: What is a digital weighing indicator and how does it work?

  • A: A digital weighing indicator is the display and control unit used in floor scales, platform scales, and other industrial weighing systems. It receives signals from load cells and converts them into readable weight values, typically shown on an LED or LCD screen. Many weighing indicators also offer features such as tare, accumulation, unit conversion, and connectivity to printers or PCs.

2. Q: Is this weighing indicator compatible with any floor or platform scale?

  • A: Yes, our weighing indicators are designed to work with most floor scales and platform scales that use standard analog load cells (usually 350Ω). Please confirm the excitation voltage and signal range match your scale's specifications for optimal performance.

3. Q: Can the weighing indicator connect to a printer or computer system?

  • A: Absolutely. Most of our weighing indicators come with RS232, RS485, or optional Bluetooth interfaces, allowing seamless data transmission to printers, computers, and warehouse management systems (WMS). This feature is especially useful for applications that require printouts or data logging.

4. Q: Is this indicator waterproof or suitable for outdoor use?

  • A: Our stainless steel weighing indicators are IP67 waterproof, making them ideal for outdoor or washdown environments such as food processing plants, agriculture, or marine operations. They are resistant to dust, water, and corrosion.

5. Q: Does this weighing indicator meet CE or OIML certification standards?

  • A: Yes, all of our industrial weighing indicators are CE and OIML certified, ensuring compliance with international safety and accuracy standards. Documentation is available upon request and OEM/custom logos are supported for qualified orders.
