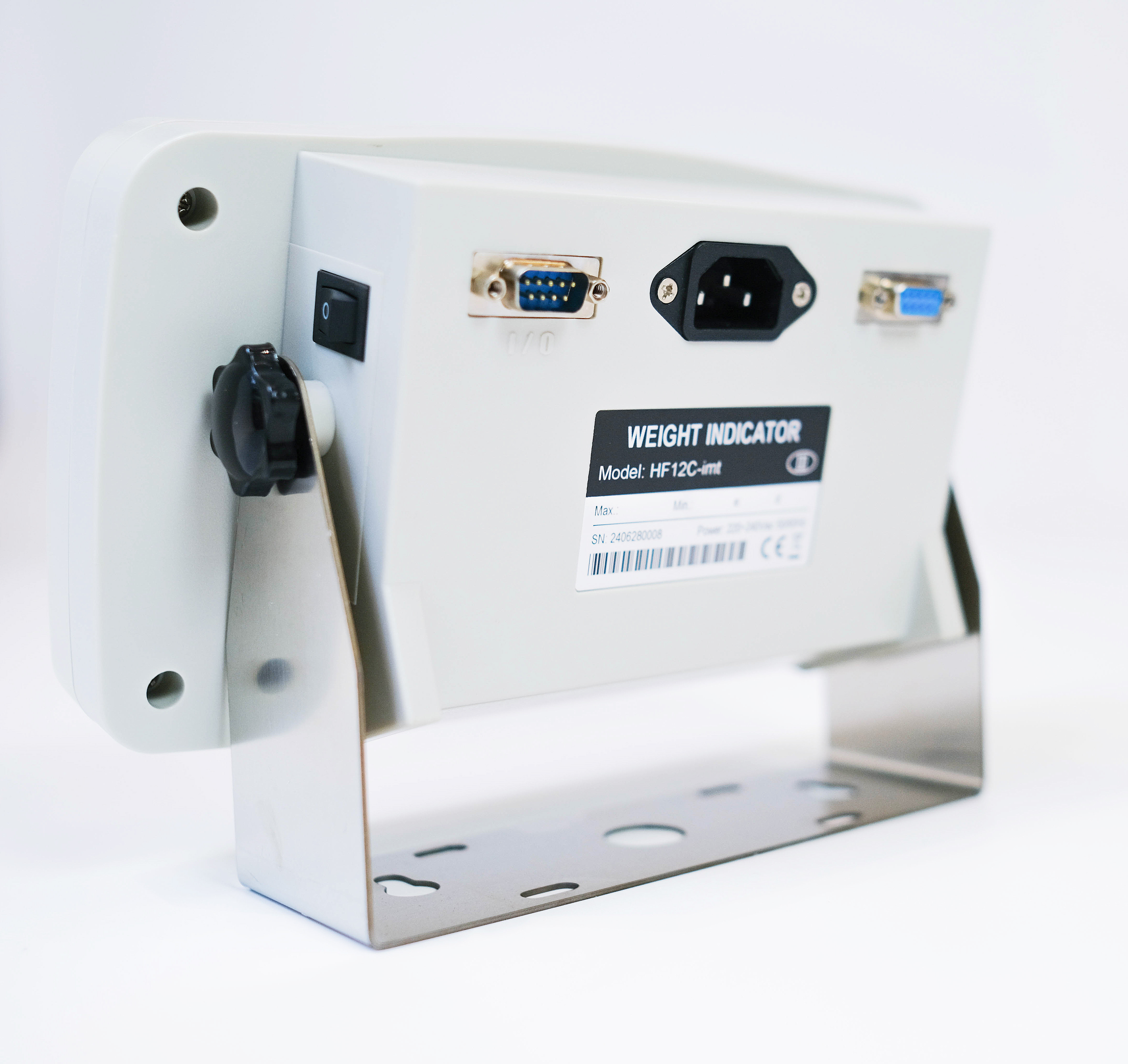

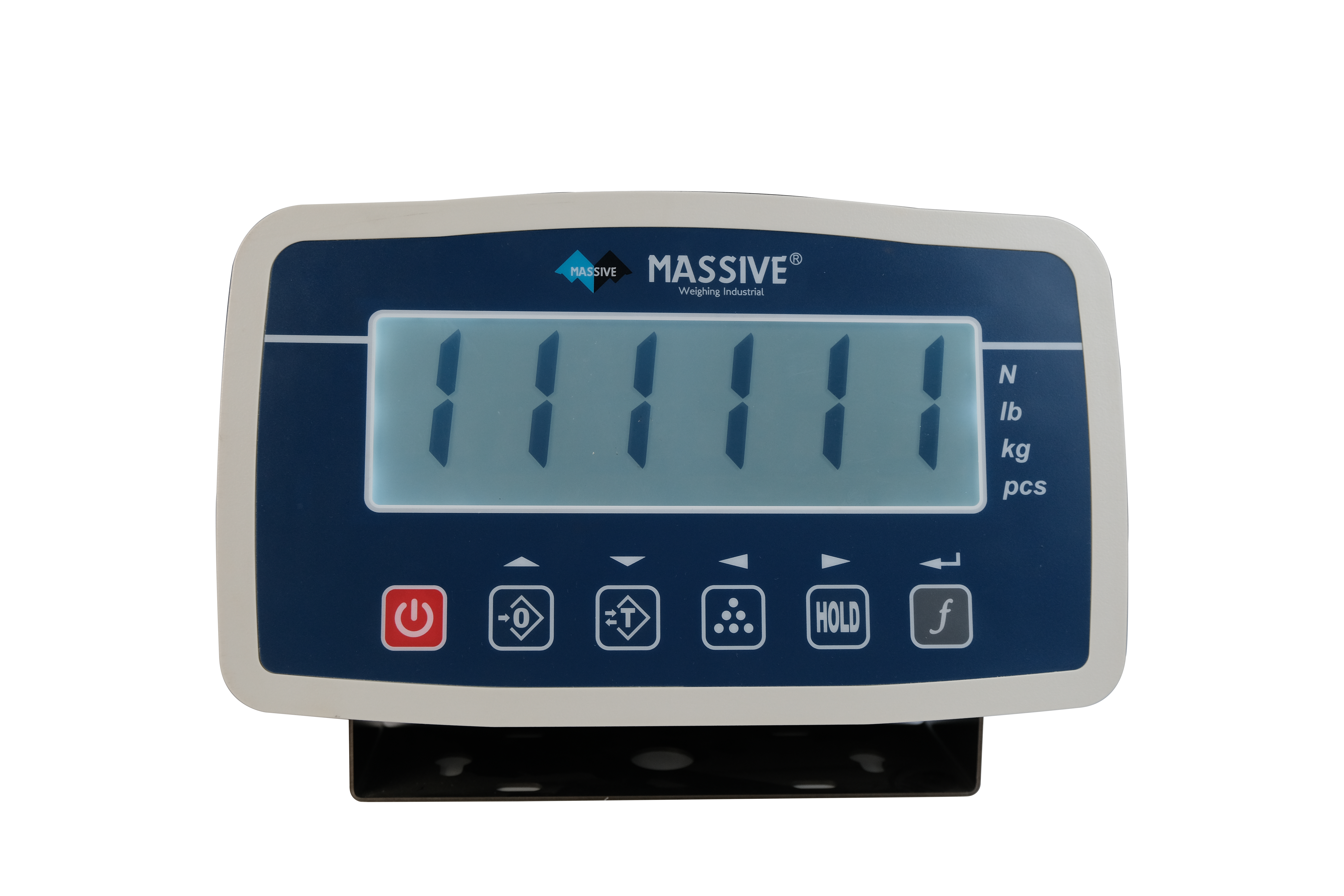

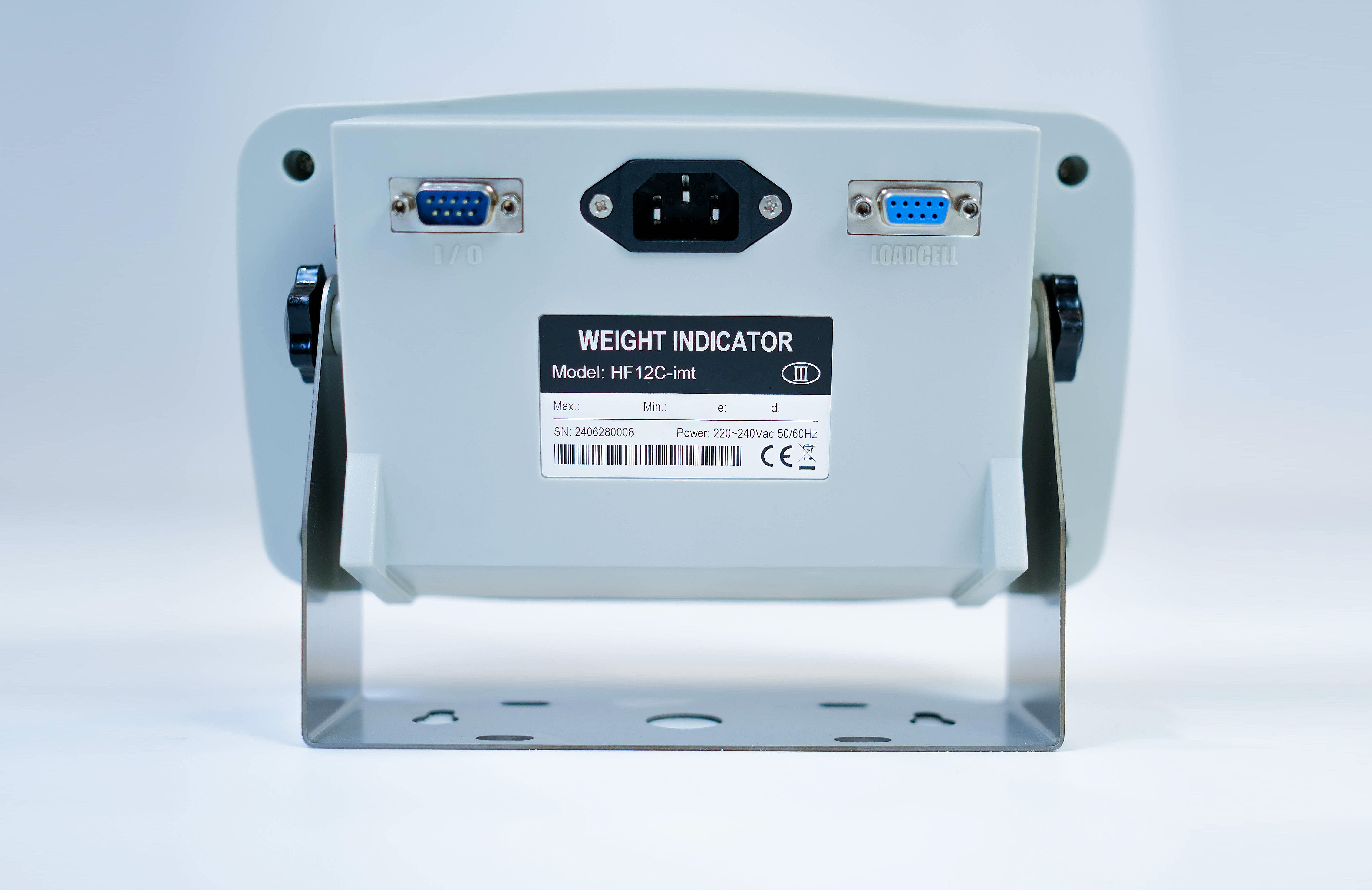

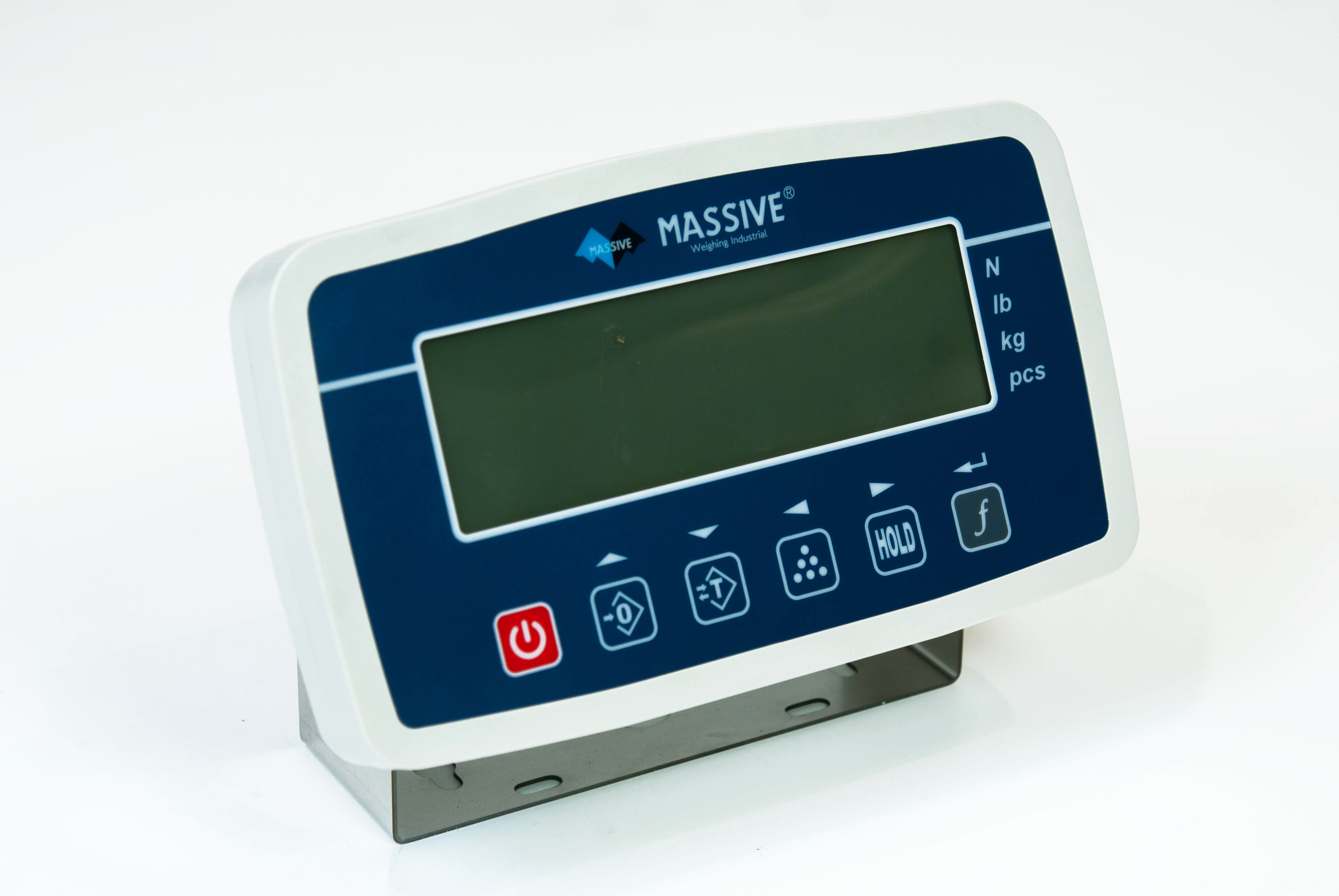

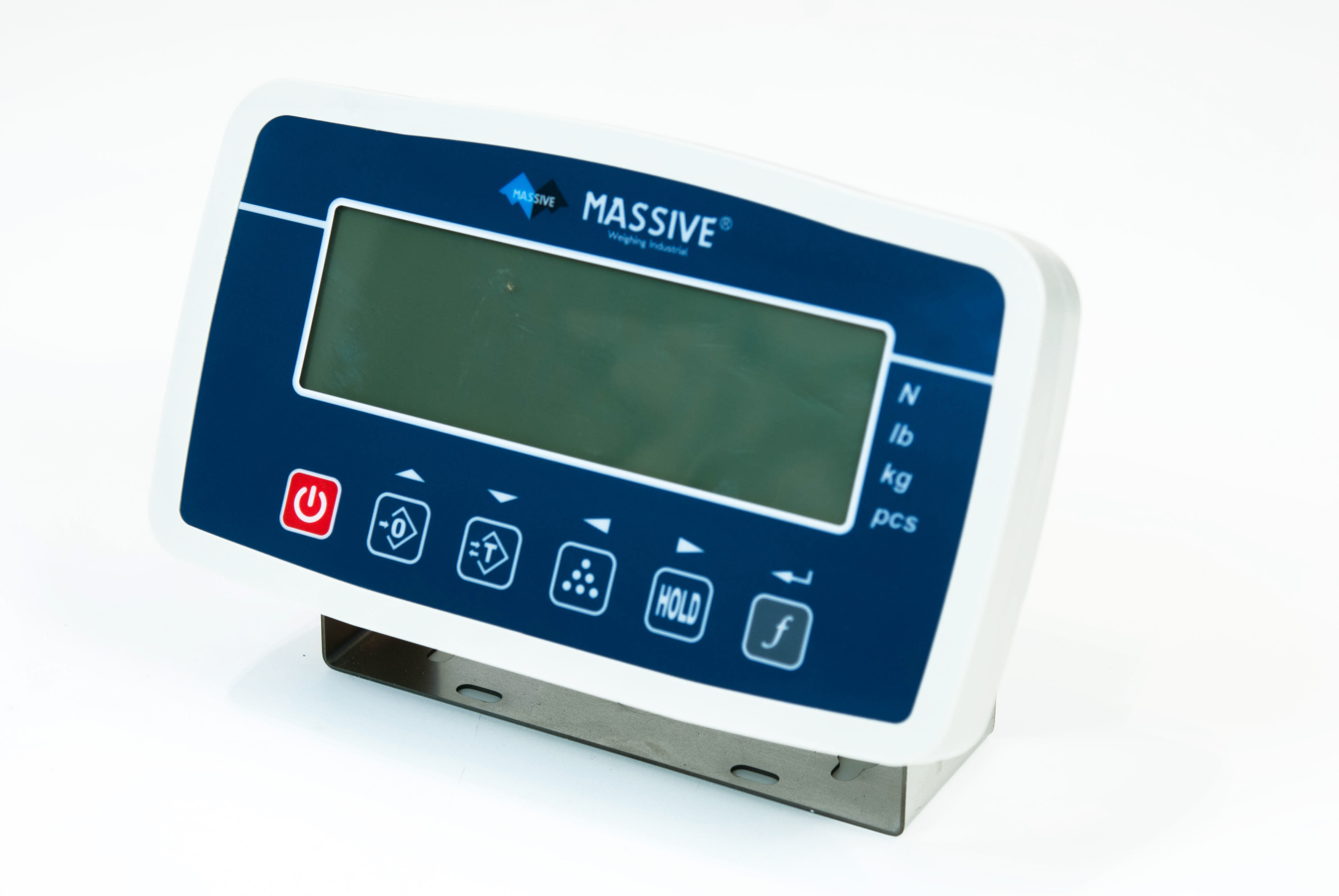

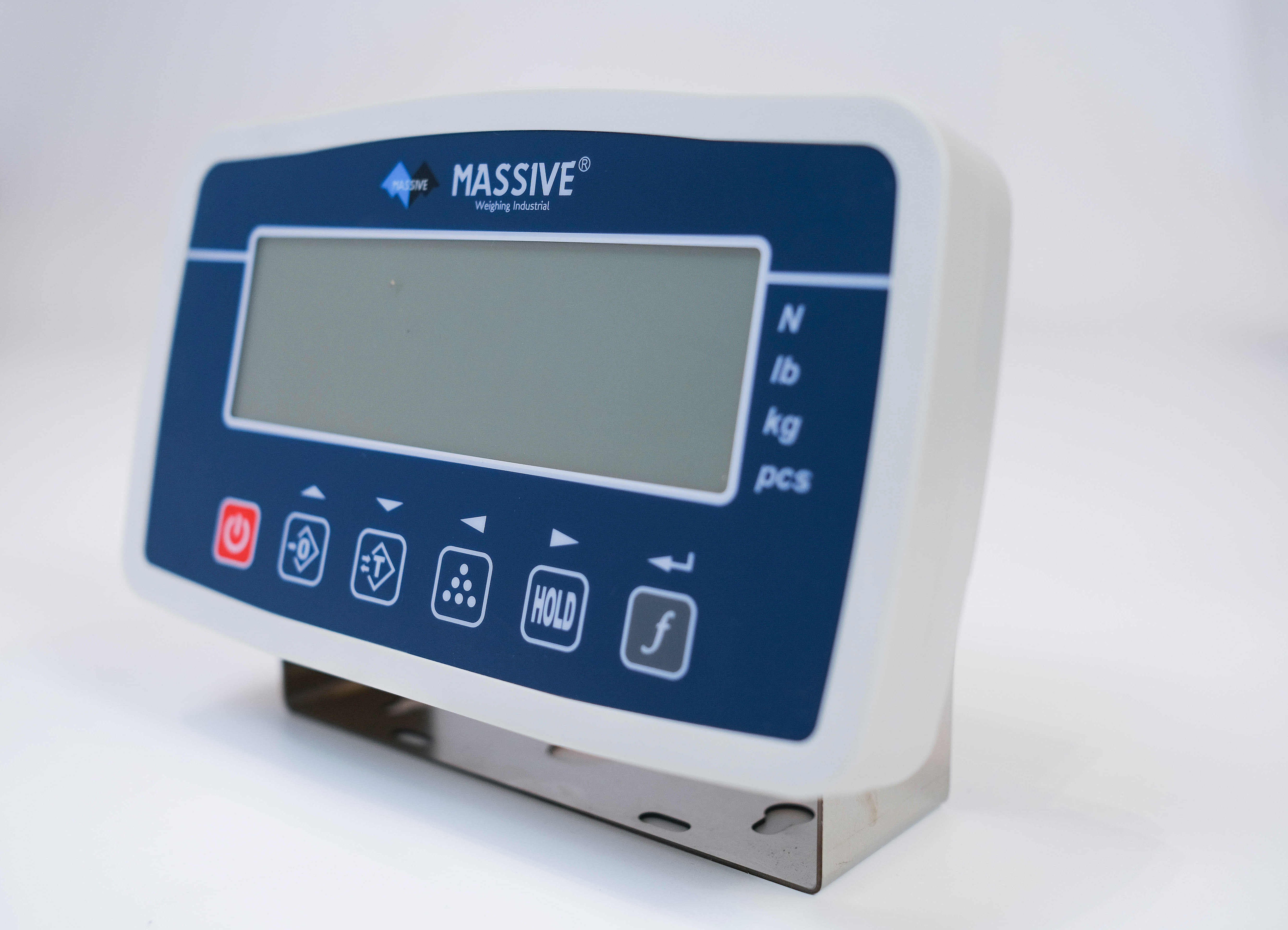

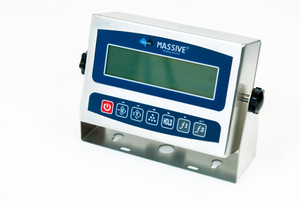

HF12 Series
Massive Weighing
| Quantity: | |
|---|---|
Features
Specifications
| Parameter | Value |
| Accuracy Class | Class III (equivalent to OIML R76) |
| Internal Resolution | 16,000,000 counts |
| Measurement Rate | 10 measurements/s |
| Loadcell Excitation Voltage | 5.0 ±3% Vdc (typical) |
| AC Power Voltage | 100–120 or 220–240 Vac / 50–60 Hz |
| Battery Life | 50 to 130 hours (typical) |
| Operating Temperature | -10 to +40°C (+14 to +104°F) |
| Operating Humidity | 0–90% (relative) at 20°C |
| Indicator Net Weight | 1.55 kg (3.40 lb) |

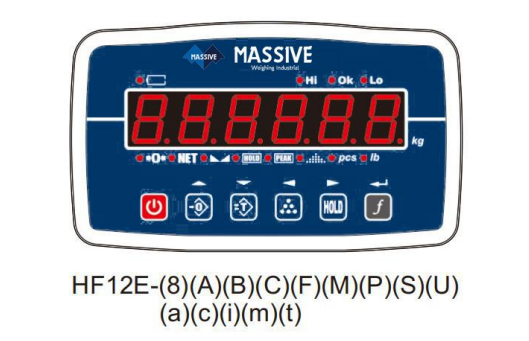

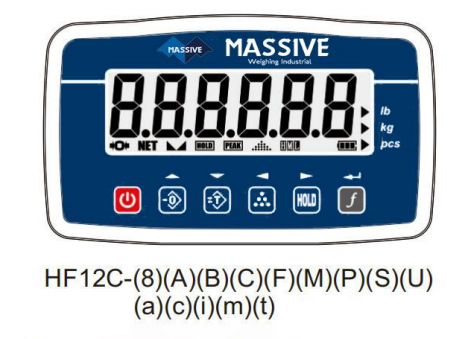

Options
Video
FAQs
A: A digital weighing indicator is the display and control unit used in floor scales, platform scales, and other industrial weighing systems. It receives signals from load cells and converts them into readable weight values, typically shown on an LED or LCD screen. Many weighing indicators also offer features such as tare, accumulation, unit conversion, and connectivity to printers or PCs.
A: Yes, our weighing indicators are designed to work with most floor scales and platform scales that use standard analog load cells (usually 350Ω). Please confirm the excitation voltage and signal range match your scale's specifications for optimal performance.
A: Absolutely. Most of our weighing indicators come with RS232, RS485, or optional Bluetooth interfaces, allowing seamless data transmission to printers, computers, and warehouse management systems (WMS). This feature is especially useful for applications that require printouts or data logging.
A: Our stainless steel weighing indicators are IP67 waterproof, making them ideal for outdoor or washdown environments such as food processing plants, agriculture, or marine operations. They are resistant to dust, water, and corrosion.
A: Yes, all of our industrial weighing indicators are CE and OIML certified, ensuring compliance with international safety and accuracy standards. Documentation is available upon request and OEM/custom logos are supported for qualified orders.
