MC-PS
Massive Weighing
| Size: | |
|---|---|
| Capacity: | |
| Quantity: | |
Description

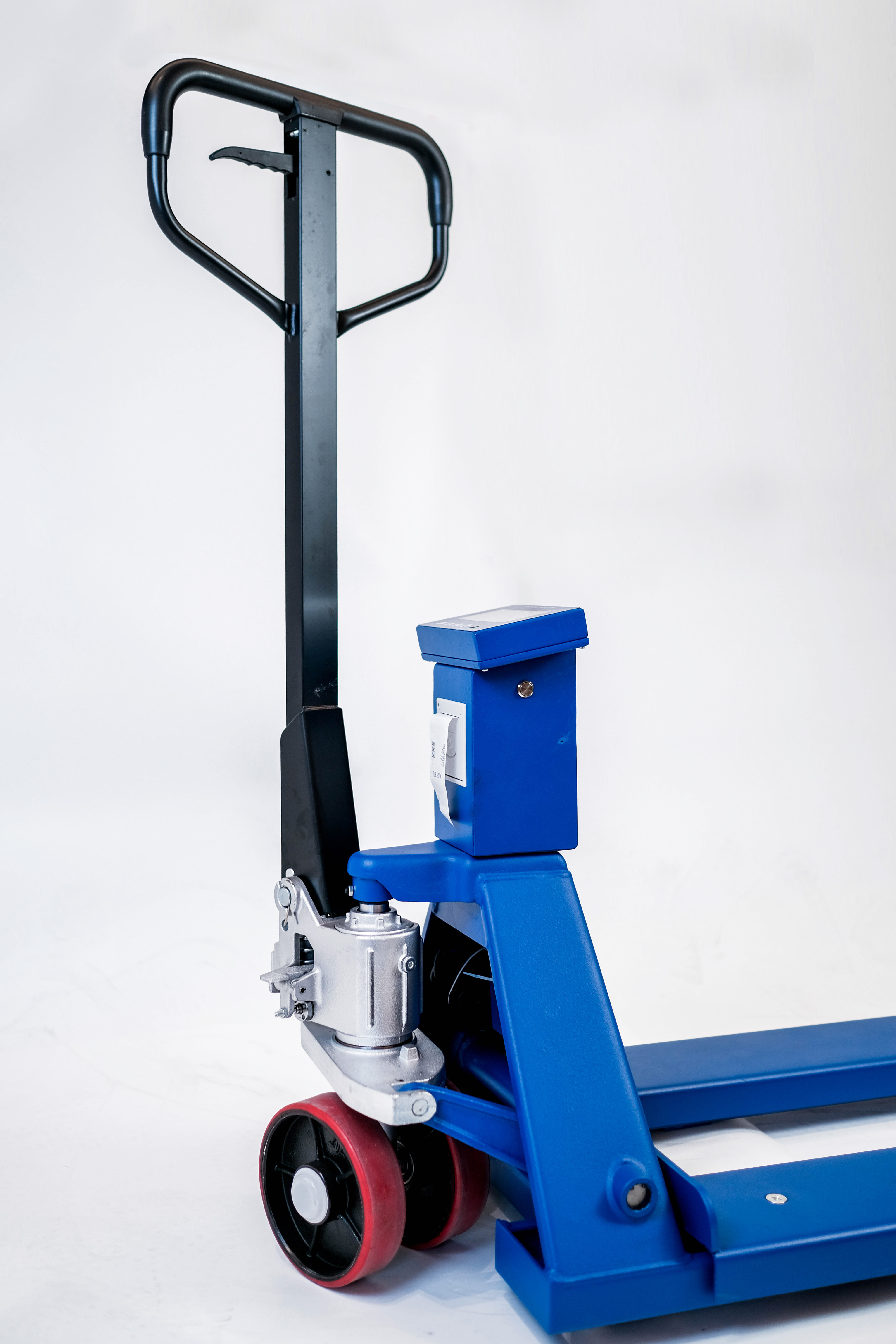

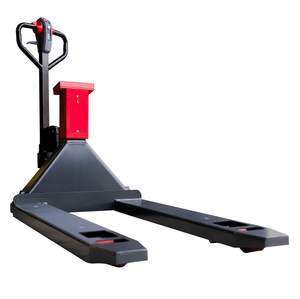

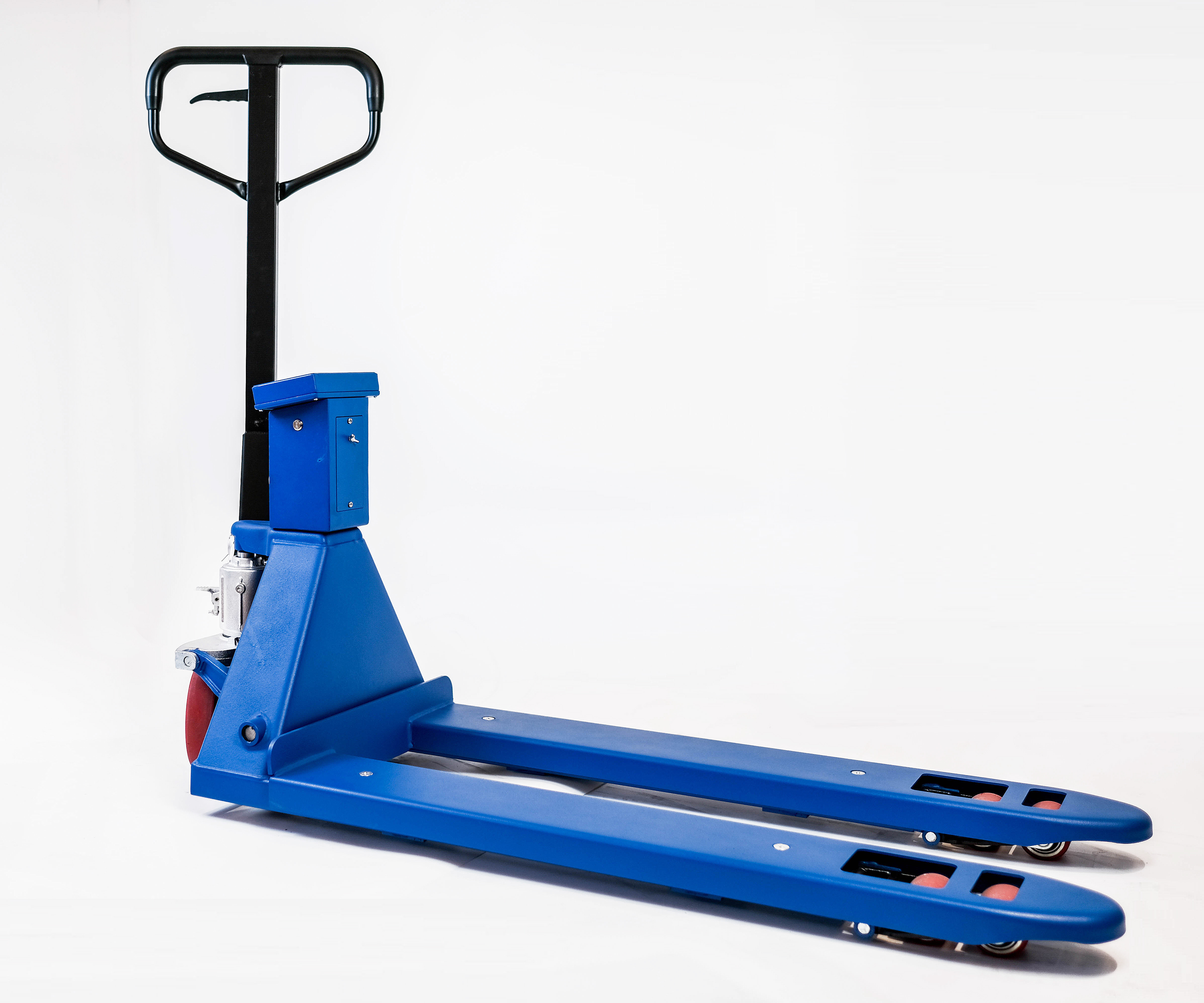

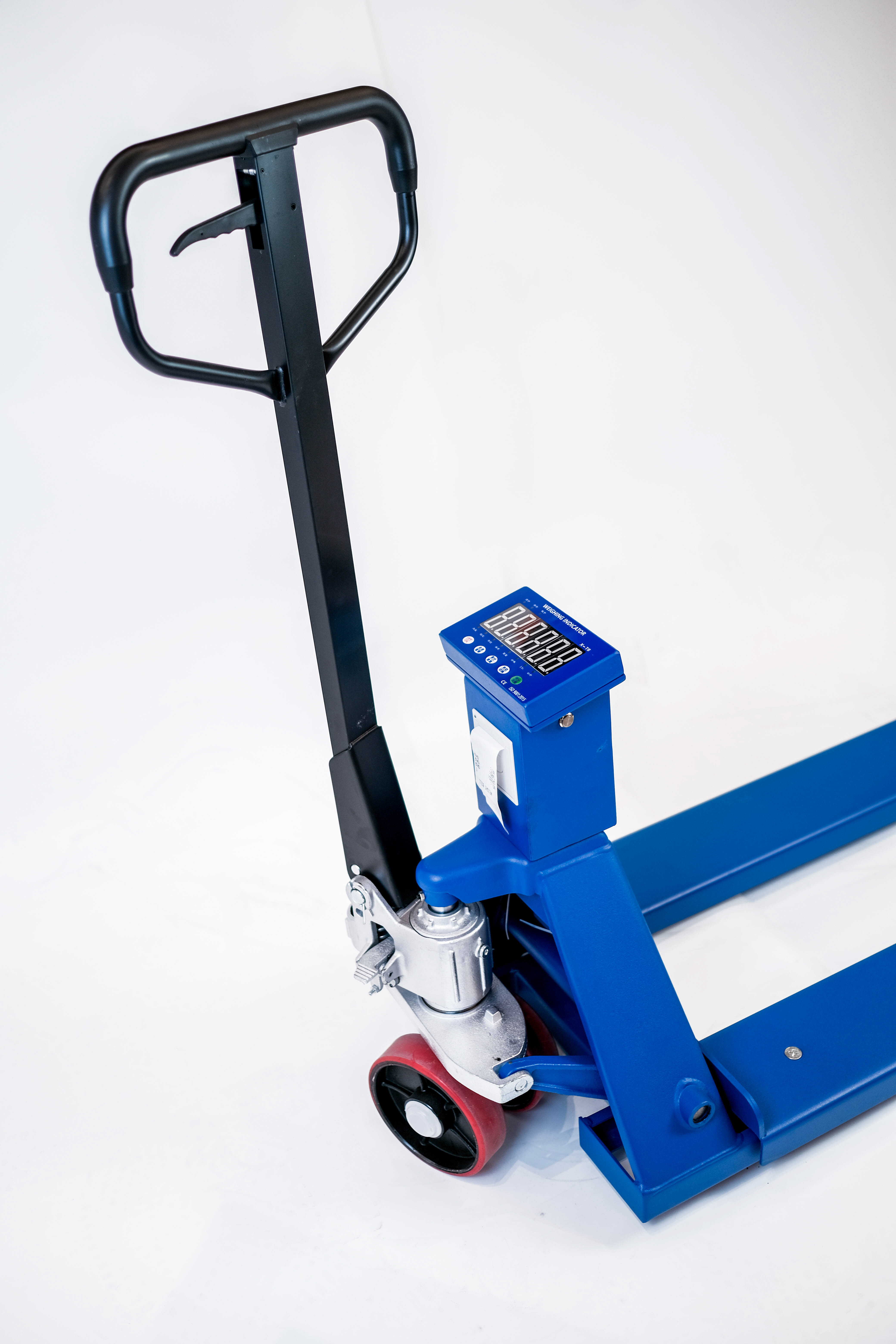

Combines the functions of a pallet jack and a scale, allowing operators to lift and weigh loads simultaneously without transferring items to a separate platform scale.
Equipped with industrial-grade load cells that deliver accurate and stable weight readings, even under heavy and unevenly distributed loads.

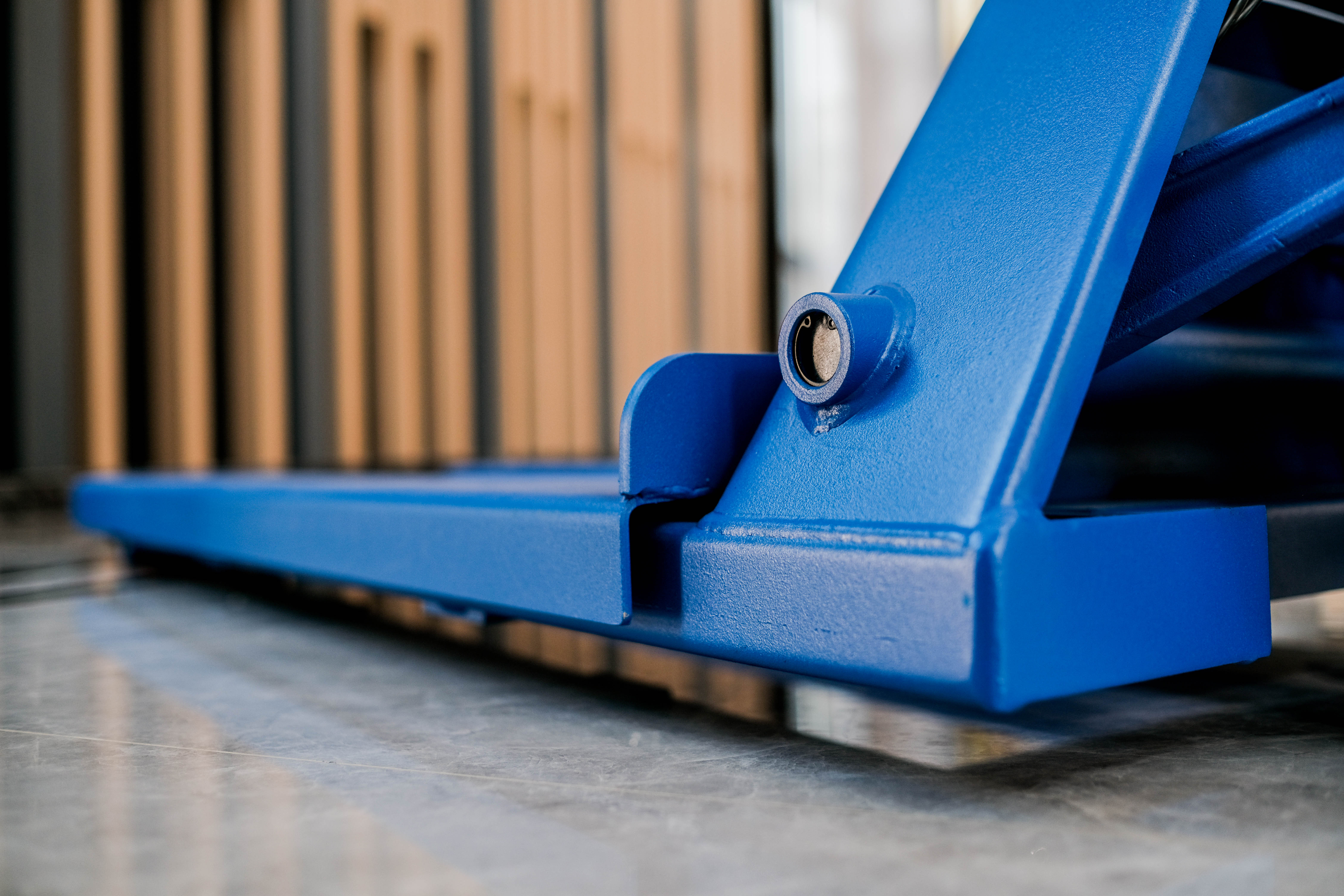

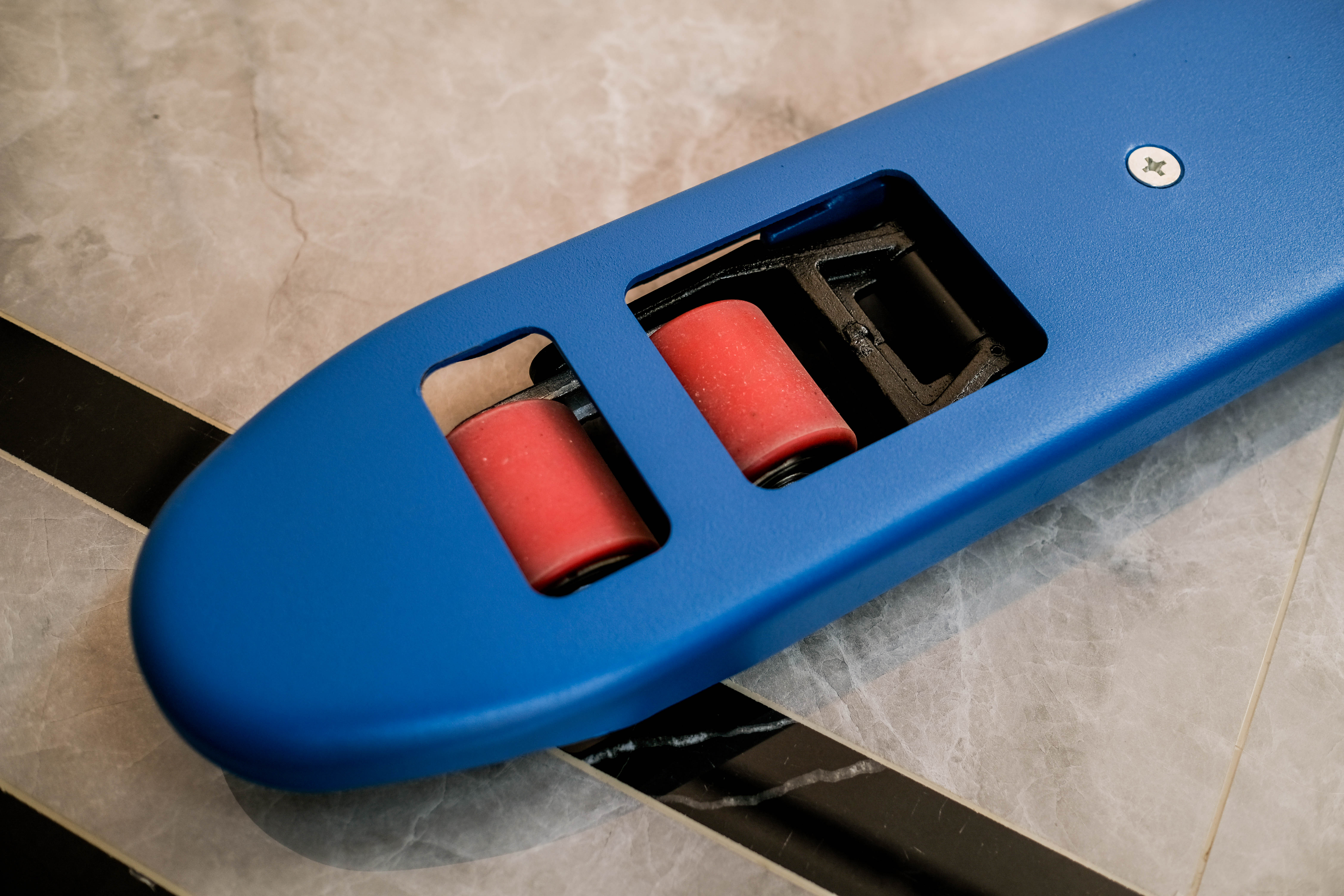

Built with a rugged steel frame and reinforced forks to handle daily use in demanding warehouse, logistics, and manufacturing environments.

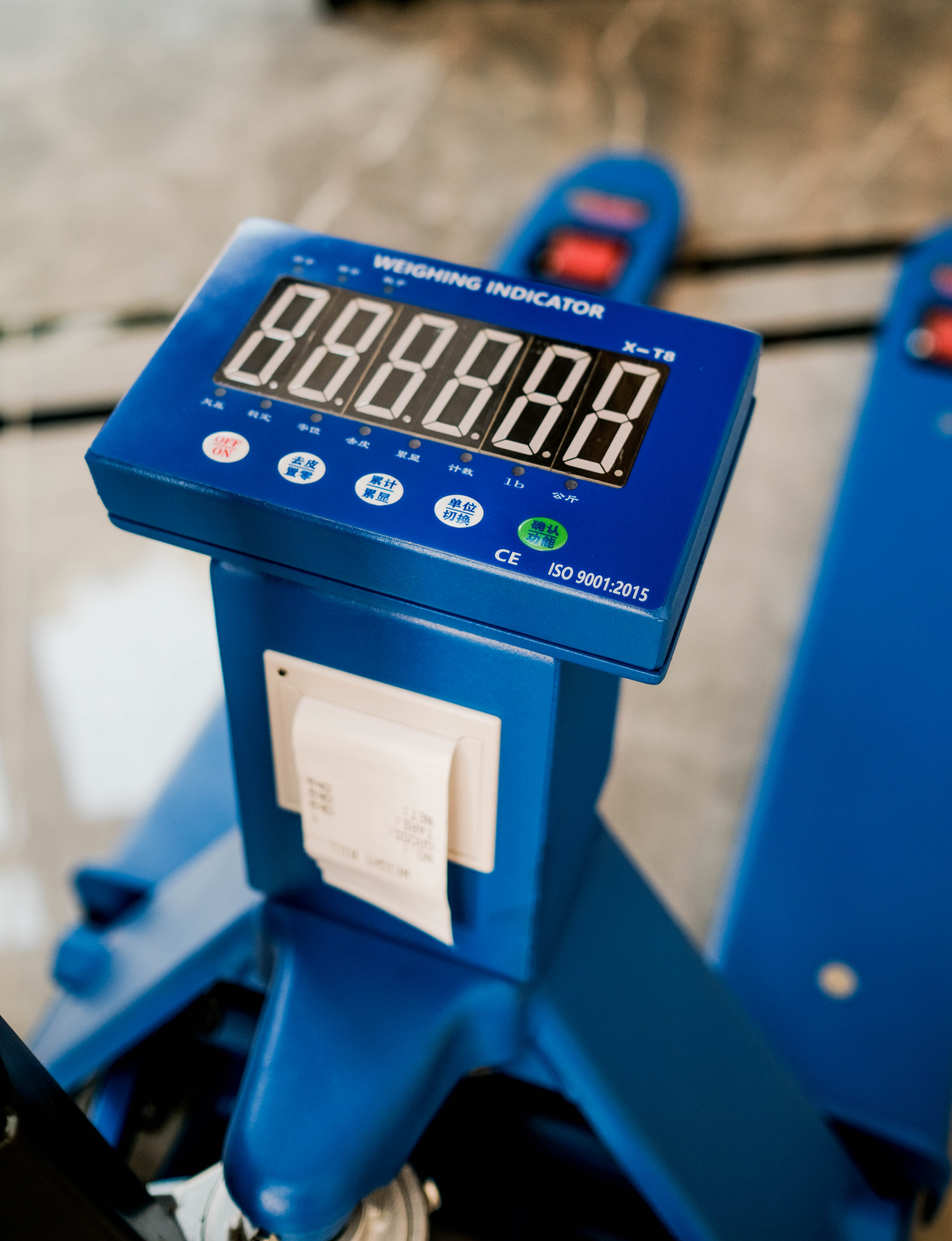

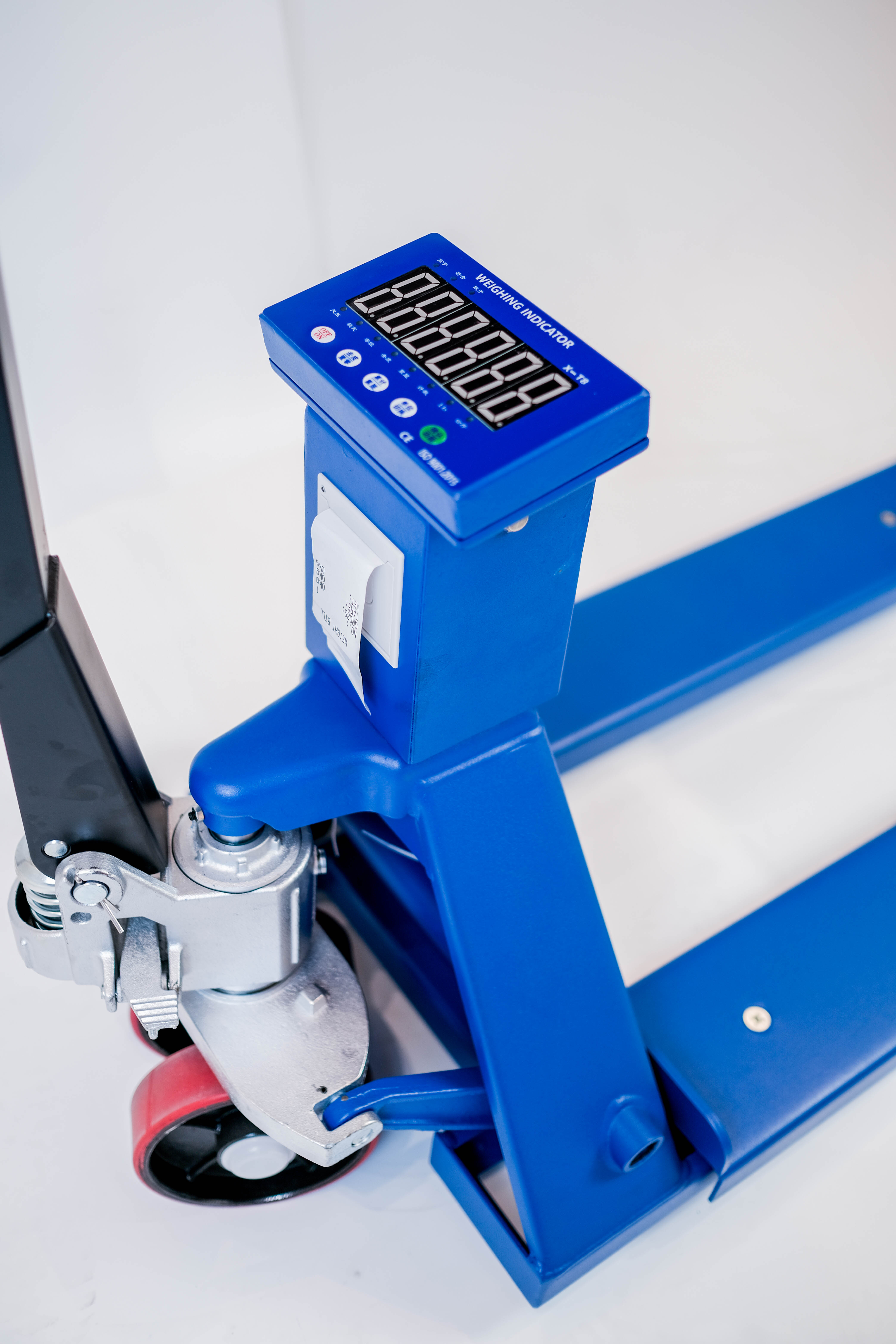

Features an easy-to-read LED or LCD display with intuitive controls, offering functions like tare, zero, accumulation, and unit switching to enhance usability.
Compact and mobile, the scale can be easily moved and positioned by one person, improving workflow efficiency in dynamic settings.
Supports RS232/USB/Bluetooth connectivity and optional thermal printer integration, enabling quick data transfer and printout of weighing results for documentation or inventory tracking.
Ideal for weighing palletized goods during storage, inventory checks, and outbound shipments to ensure accurate logistics management.
Used for monitoring material input and output, helping maintain precise control over raw materials and finished goods.
Ensures weight compliance for freight carriers and optimizes load planning to reduce overloading risks and transport costs.
Facilitates quick weight verification of bulk goods before stocking or order fulfillment, improving operational efficiency.
Suitable for weighing packaged produce or processed items directly on pallets, supporting traceability and quality control.
Our pallet scale merges lifting and weighing functions into one device, allowing operators to weigh goods directly during pallet handling. This saves time, reduces labor, and eliminates the need for a separate floor scale.
Fitted with high-precision load cells and a stable digital indicator, it ensures consistent and accurate weight readings, even in demanding warehouse and logistics environments.
Constructed with reinforced steel for long-term use, the scale also features an easy-to-read display and intuitive controls, making it simple to operate with minimal training.
Specification
| Model | MCPS-0690 | MCPS-0560 | |||||
| Dimension | W(mm) | 690±5 | 560±5 | ||||
| L(mm) | 1150 | 1150 | |||||
| Single fork（mm） | 160 | ||||||
| Lifting Height Range | 85mm-210mm | ||||||
| Plate Material | Q235 carbon steel or stainless steel | ||||||
| Thickness of plate | 4mm | 5mm | 6mm | 4mm | 5mm | 6mm | |
| Weighing Capacity | 2000KG | 2500KG | 3000KG | 2000KG | 2500KG | 3000KG | |
| Division value | 0.5KG | ||||||
| Indicator/Display | A12E，A27，A23P optional（OIML&CE approved） | ||||||
| Load Cells | 4 pcs Keli SQB，Zemic H8C optional | ||||||
| Display Designators | On/Off , Zero , Tare , kg/lb | ||||||
| Transmission Distance | RS232C≤30m | ||||||
| Power Supply | Rechargeable Battery, AC 187~242V;49~51Hz , DC 6V/4AH | ||||||
| Junction box | 5 hole 4 wire plastic junction box, stainless steel junction box is optional | ||||||
| Signal cable | 40cm single shielded 4-core cable | ||||||
| Color | Standard hand grip black and scale body blue,≥20pcs can be customized | ||||||
| Packing method | 2pcs or 4pcs or 6pcs in one wooden case | ||||||
Video
FAQs
A: A pallet scale is a combination of a pallet jack and a weighing scale. It allows you to weigh pallets and their contents while lifting and moving them within a warehouse or production facility. It operates by using built-in sensors that measure weight as the pallet is lifted.
A: The Pallet Scale typically offers a weight capacity ranging from 1,000 kg to 3,000 kg, depending on the model. Custom capacities can be available upon request for specific applications.
A: Yes, the pallet scale is designed to be versatile and can be used for various types of pallets, including wooden, plastic, and metal pallets. Its adjustable forks accommodate different pallet sizes and configurations.
A: Yes, the pallet scale is easy to maintain. The built-in weighing sensors are robust and require minimal upkeep. Regular cleaning and checking the battery are the most common maintenance tasks to ensure smooth operation.
A: Depending on the model, the pallet scale can be used in outdoor environments. However, it's important to ensure that the scale is rated for outdoor use, especially in harsh conditions like rain or extreme temperatures. Be sure to check the specifications for weather resistance and suitability for your needs.
