MC-PS
Massive Weighing
| Size: | |
|---|---|
| Capacity: | |
| Quantity: | |
Description
Combines pallet transport and weighing in one device. Built-in load cells and a digital indicator allow real-time weight measurement while moving goods, eliminating the need for separate weighing stations.
Equipped with industrial-grade load cells for accurate and consistent weight readings. Ideal for applications requiring precise load control, billing, or inventory management.
Manufactured with a heavy-duty steel frame and reinforced forks, it is built to withstand daily use in demanding environments such as warehouses, factories, and freight terminals.

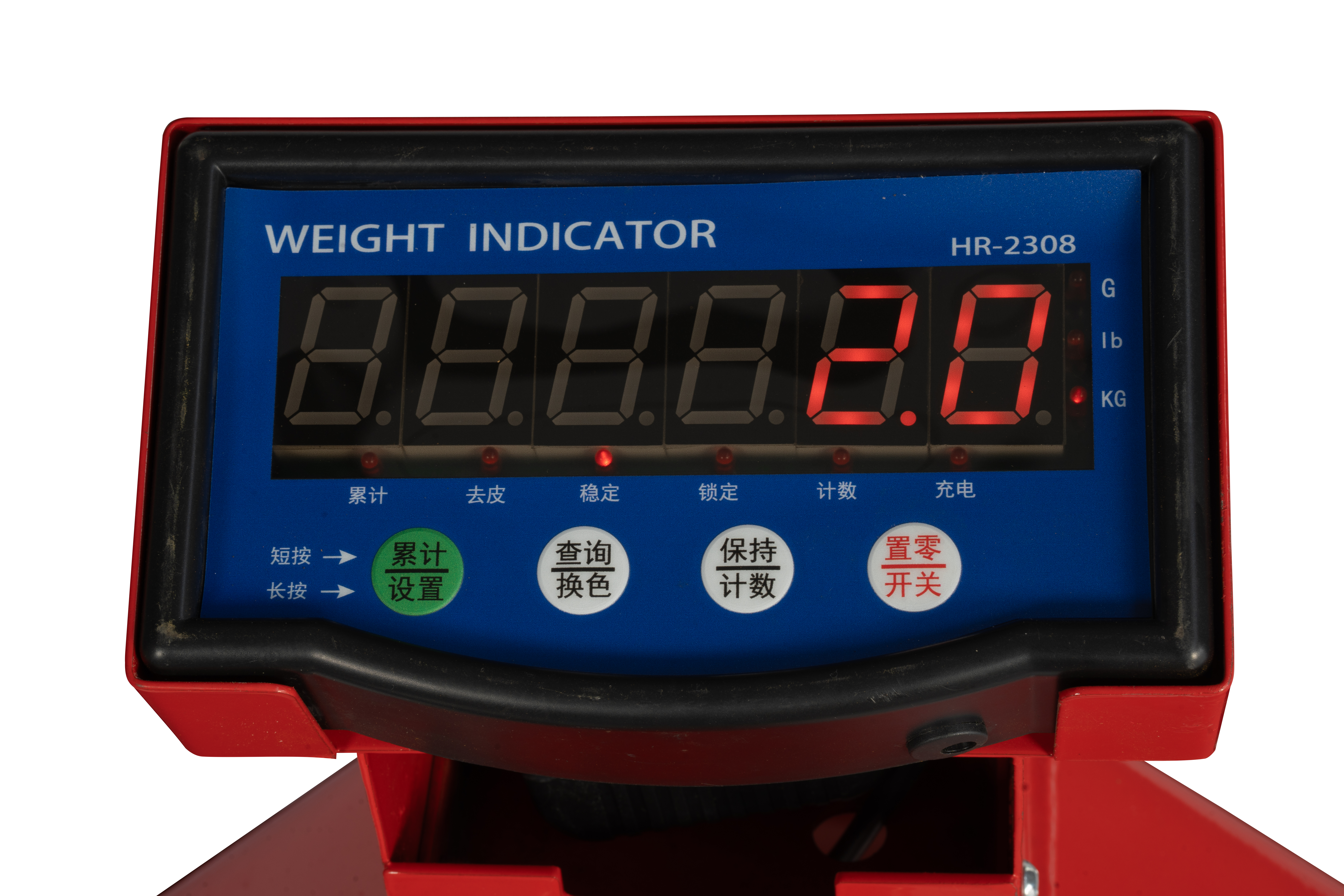

Features a clear LCD or LED screen with basic functions such as tare, zero, and unit switch. Some models include backlighting for improved visibility in low-light areas.

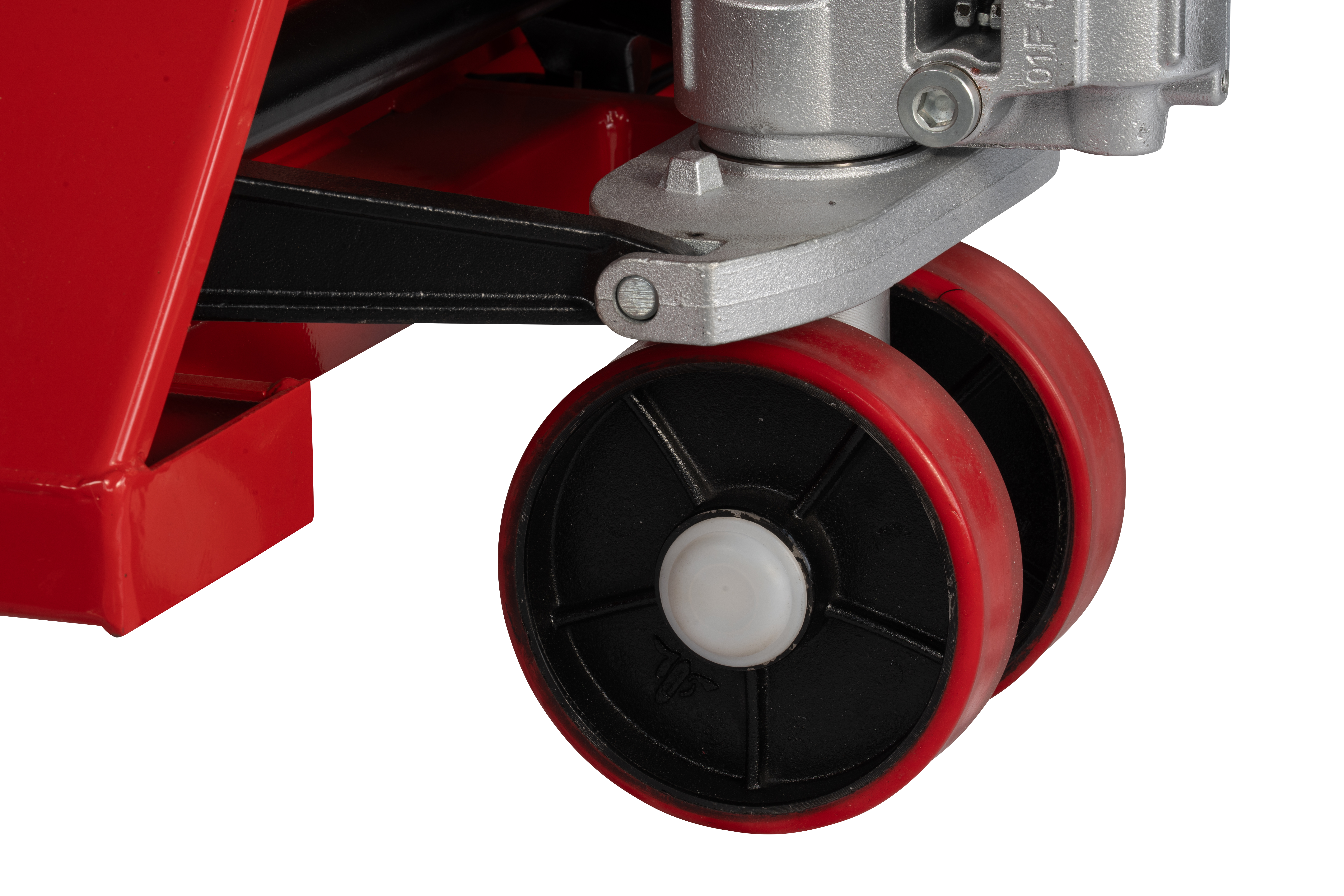

Ergonomic handle design and polyurethane wheels ensure smooth steering and stable transport of heavy loads across warehouse floors, ramps, and narrow aisles.
Available in various fork sizes, weight capacities, and optional features such as stainless steel construction, thermal printers, or rechargeable batteries to suit different industrial needs.
Used to weigh pallets during stock intake, transfers, or dispatch, helping maintain accurate inventory records and reduce stock discrepancies.
Ideal for weighing raw materials or components directly on the production floor, ensuring batch accuracy and streamlining internal logistics.
Weighs palletized shipments before loading to ensure compliance with transport weight limits and accurate billing, reducing the risk of penalties.
Supports bulk handling and weighing during goods movement between storage areas, retail outlets, or wholesale divisions, improving operational efficiency.
Optional stainless steel versions allow safe and hygienic weighing and transport in environments requiring strict cleanliness and corrosion resistance.
Our Pallet Truck Scale combines lifting, transporting, and weighing into one streamlined process. This significantly improves operational efficiency by reducing the need for separate weighing equipment and minimizing handling time.
Fitted with high-quality load cells and a stable weighing structure, it delivers precise and repeatable weight data. Ideal for use in logistics, production, and shipping environments where measurement accuracy is essential.
Constructed with a reinforced steel frame and smooth-rolling wheels, it withstands the demands of daily industrial use. Optional features like stainless steel finish or onboard printers make it adaptable to various working conditions.
Specification
| Model | MCPS-0690 | MCPS-0560 | |||||
| Dimension | W(mm) | 690±5 | 560±5 | ||||
| L(mm) | 1150 | 1150 | |||||
| Single fork（mm） | 160 | ||||||
| Lifting Height Range | 85mm-210mm | ||||||
| Plate Material | Q235 carbon steel or stainless steel | ||||||
| Thickness of plate | 4mm | 5mm | 6mm | 4mm | 5mm | 6mm | |
| Weighing Capacity | 2000KG | 2500KG | 3000KG | 2000KG | 2500KG | 3000KG | |
| Division value | 0.5KG | ||||||
| Indicator/Display | A12E，A27，A23P optional（OIML&CE approved） | ||||||
| Load Cells | 4 pcs Keli SQB，Zemic H8C optional | ||||||
| Display Designators | On/Off , Zero , Tare , kg/lb | ||||||
| Transmission Distance | RS232C≤30m | ||||||
| Power Supply | Rechargeable Battery, AC 187~242V;49~51Hz , DC 6V/4AH | ||||||
| Junction box | 5 hole 4 wire plastic junction box, stainless steel junction box is optional | ||||||
| Signal cable | 40cm single shielded 4-core cable | ||||||
| Color | Standard hand grip black and scale body red,≥20pcs can be customized | ||||||
| Packing method | 2pcs or 4pcs or 6pcs in one wooden case | ||||||
Video
FAQs
A: A Pallet Truck Scale is a manual pallet jack integrated with a digital weighing system. It enables users to lift, move, and weigh pallets in one step. High-precision load cells are embedded in the forks, providing real-time weight readings on a digital indicator. This eliminates the need to transport loads to a separate floor scale.
A: Our Pallet Truck Scales deliver high accuracy, typically within ±0.1% of the load. This level of precision makes them suitable for shipping, receiving, and inventory control tasks where weight verification is essential. Calibration options are available to meet specific industry standards.
A: Yes. Our Pallet Truck Scales feature rugged steel frames and durable hydraulic systems designed for demanding settings like warehouses, factories, and loading docks. For harsher environments such as food processing or chemical industries, we offer stainless steel and waterproof models.
A: Absolutely. The digital indicator has a large, backlit LCD screen for easy visibility in different lighting. It provides essential functions such as zero, tare, hold, and accumulation, ensuring simple operation even for new users.
A: The indicator is powered by a rechargeable battery or standard AA batteries, delivering long run times between charges. Maintenance is straightforward — regular charging, occasional calibration, and general cleaning are typically sufficient. Spare parts like wheels, batteries, and indicators are easy to replace when necessary.
