In today's fast-paced industrial environments, accurate weight measurement plays a pivotal role in maintaining operational efficiency, reducing waste, and ensuring compliance. One of the most commonly used devices in warehouses, factories, shipping centers, and agricultural settings is the Platform Scale. But how exactly do platform scales work?
In this in-depth blog post, we'll break down the technology, components, and working principles of platform scales, especially those manufactured by Massive Weighing, a trusted leader in industrial weighing solutions since 2003.
A Platform Scale is a flat-surfaced weighing device designed to accommodate various loads, ranging from small parcels to large pallets and containers. The platform is supported by high-precision load cells, which are the core sensors that measure weight. These scales are commonly used in logistics, manufacturing, agriculture, food processing, and chemical industries.
Platform scales from Massive Weighing are known for their durability, accuracy, and compatibility with different data systems, making them ideal for both standalone use and integrated workflows.
To understand how platform scales work, it's important to familiarize yourself with their main components:
This is the flat surface where the object is placed. The platform is typically made of carbon steel, stainless steel, or aluminum, depending on the application. It may come in various sizes, from compact bench platforms to large industrial floor scales.

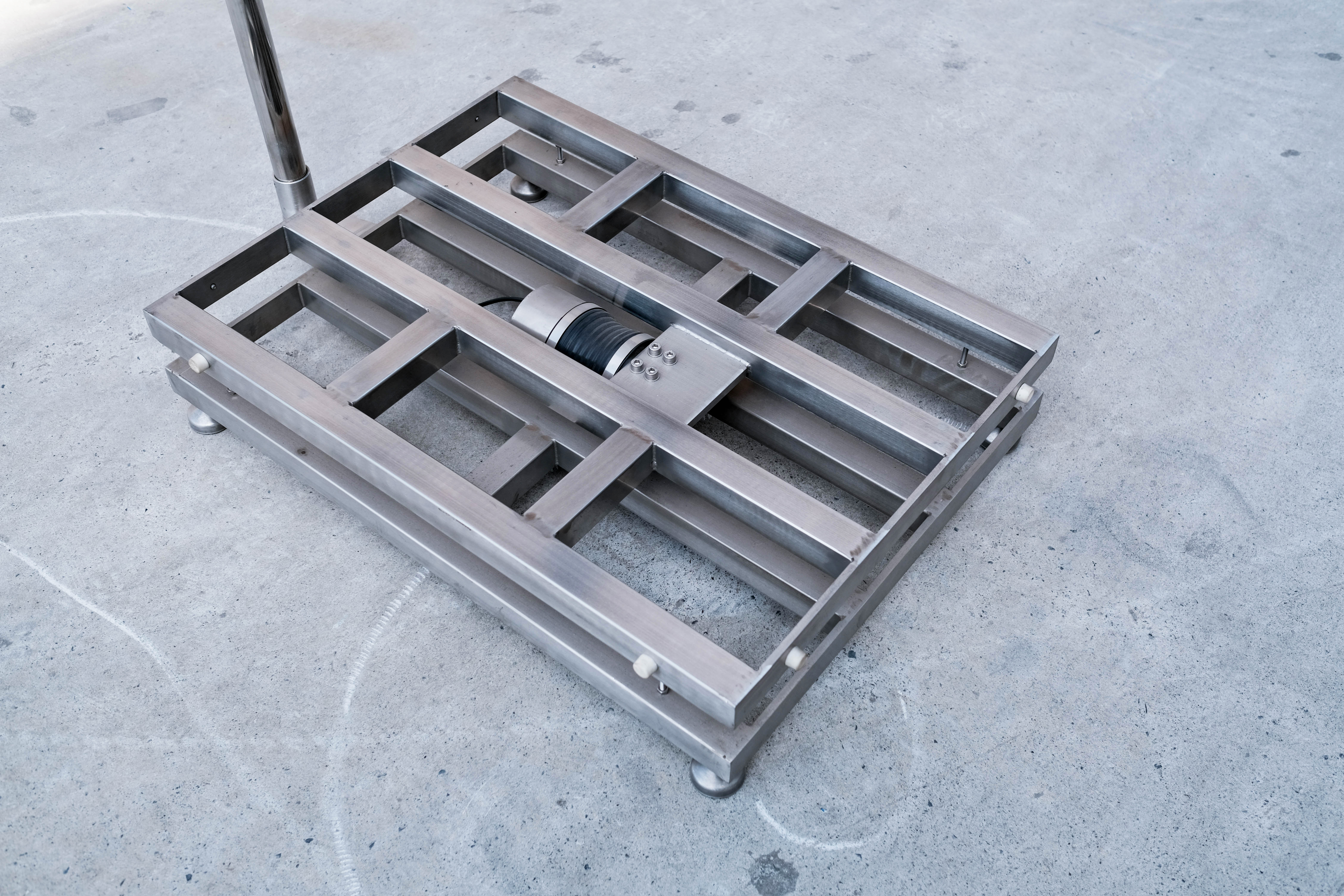

Load cells are the sensors located beneath the platform. They convert the mechanical force (weight) into an electrical signal. The number of load cells can vary—some small scales use one or two, while industrial models use four or more for better load distribution.
The junction box connects all the load cells and averages their output, sending a combined signal to the weighing indicator. It also helps compensate for unequal loading or environmental interference.
Also known as the display or terminal, the indicator converts the electrical signal from the load cells into a readable weight value. Many indicators now include smart features like tare functions, unit conversion, data storage, and communication ports (RS232, USB, Wi-Fi, Bluetooth, etc.).
These include bolts, feet, bumpers, and wiring that ensure secure and stable performance. Vibration isolation mounts are sometimes used in heavy-duty settings to reduce measurement error.
The process of weighing on a platform scale follows a well-defined sequence of mechanical and electronic operations:
When an object is placed on the platform, it exerts a force (weight) on the load cells beneath. This mechanical pressure causes a slight deformation in the load cells.
This deformation changes the electrical resistance within the strain gauges inside the load cells. This change is extremely small and is measured in millivolts.
The electrical signal generated is very weak. The junction box or weighing indicator includes a built-in amplifier that strengthens the signal for further processing.
The amplified signal is then converted into a digital format that the weighing indicator can interpret.
The digital signal is processed by the microcontroller inside the indicator, and the final weight value is shown on the screen. Many modern indicators can also send this data to printers, computers, or MES/ERP systems for record-keeping and inventory management.
Platform Scales come in a variety of configurations, each suited for different applications. Massive Weighing offers the following popular models:

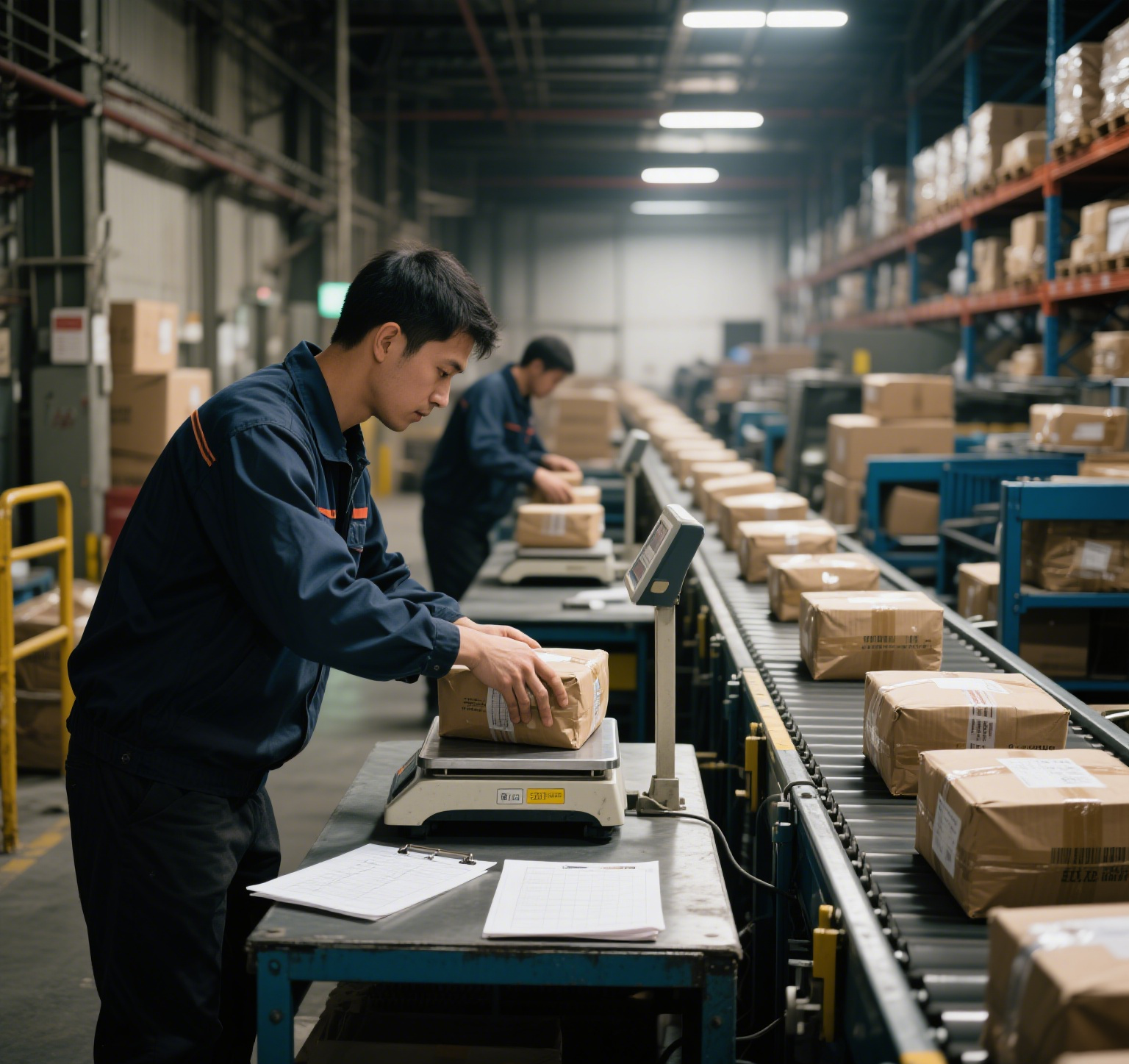

Bench Scales – Compact and suitable for packing and sorting stations.
Floor Scales – Heavy-duty, low-profile platforms for weighing large pallets or drums.
Pit-Mounted Scales – Installed in the ground for flush mounting, commonly used in high-traffic industrial areas.
Stainless Steel Platform Scales – Designed for hygienic environments such as food and pharmaceutical processing.
Explosion-Proof Scales – Built for hazardous environments where flammable substances are present.
Since 2003, Massive Weighing has been manufacturing premium platform scales that are trusted globally for their reliability and innovation. Here's what sets them apart:
Each scale is built with OIML-approved load cells, ensuring accuracy up to 0.02% of the full scale.
Massive Weighing offers custom platform sizes, capacities (from 60kg to 10 tons), and indicators tailored to customer needs.
Whether it's carbon steel for rugged industrial use or stainless steel for clean environments, the materials are corrosion-resistant and built to last.
With RS232, USB, Bluetooth, and Wi-Fi options, their scales integrate smoothly with printers, barcode scanners, and warehouse management systems.
Massive Weighing provides calibration, installation, and technical support worldwide, backed by a strong warranty and responsive service.
To ensure consistent performance and long service life, follow these best practices:
Clean the platform regularly to avoid dust or debris interfering with load cells.
Check load cell cables for wear and ensure they're securely connected.
Calibrate periodically using certified weights, especially in legal-for-trade applications.
Avoid shock loading, which can damage load cells if heavy items are dropped suddenly.
Protect from moisture and chemicals, especially in washdown or corrosive environments.
Understanding how platform scales work gives users a better appreciation of their critical role in modern industries. These precision instruments combine mechanical strength with electronic intelligence to provide accurate, repeatable weight readings that drive business decisions.
If you're looking for a platform scale that offers durability, performance, and cutting-edge features, Massive Weighing has the perfect solution. From simple floor models to fully integrated weighing systems, their products are designed to deliver results you can count on.
